Harrison & Harrison (1933)

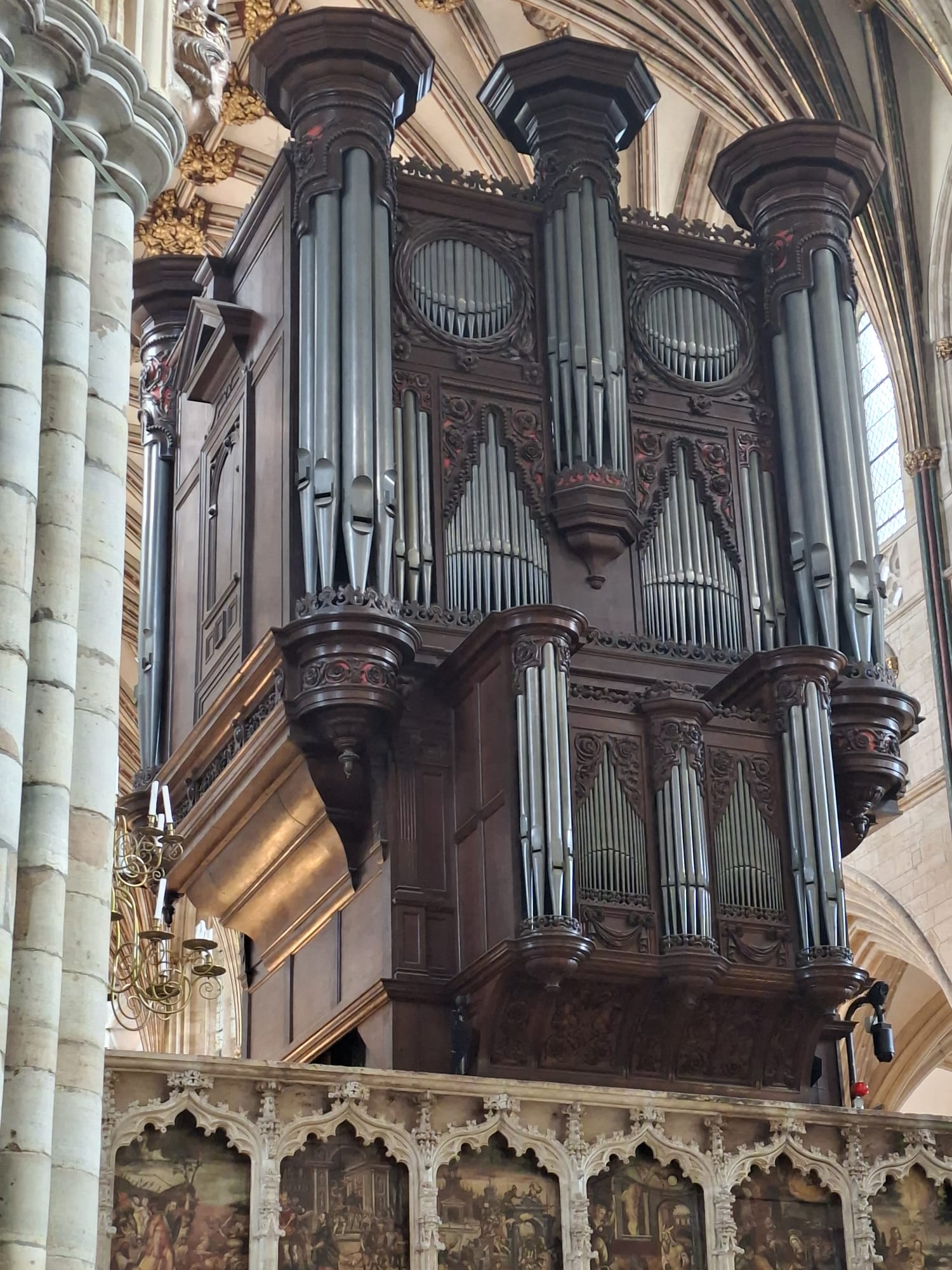

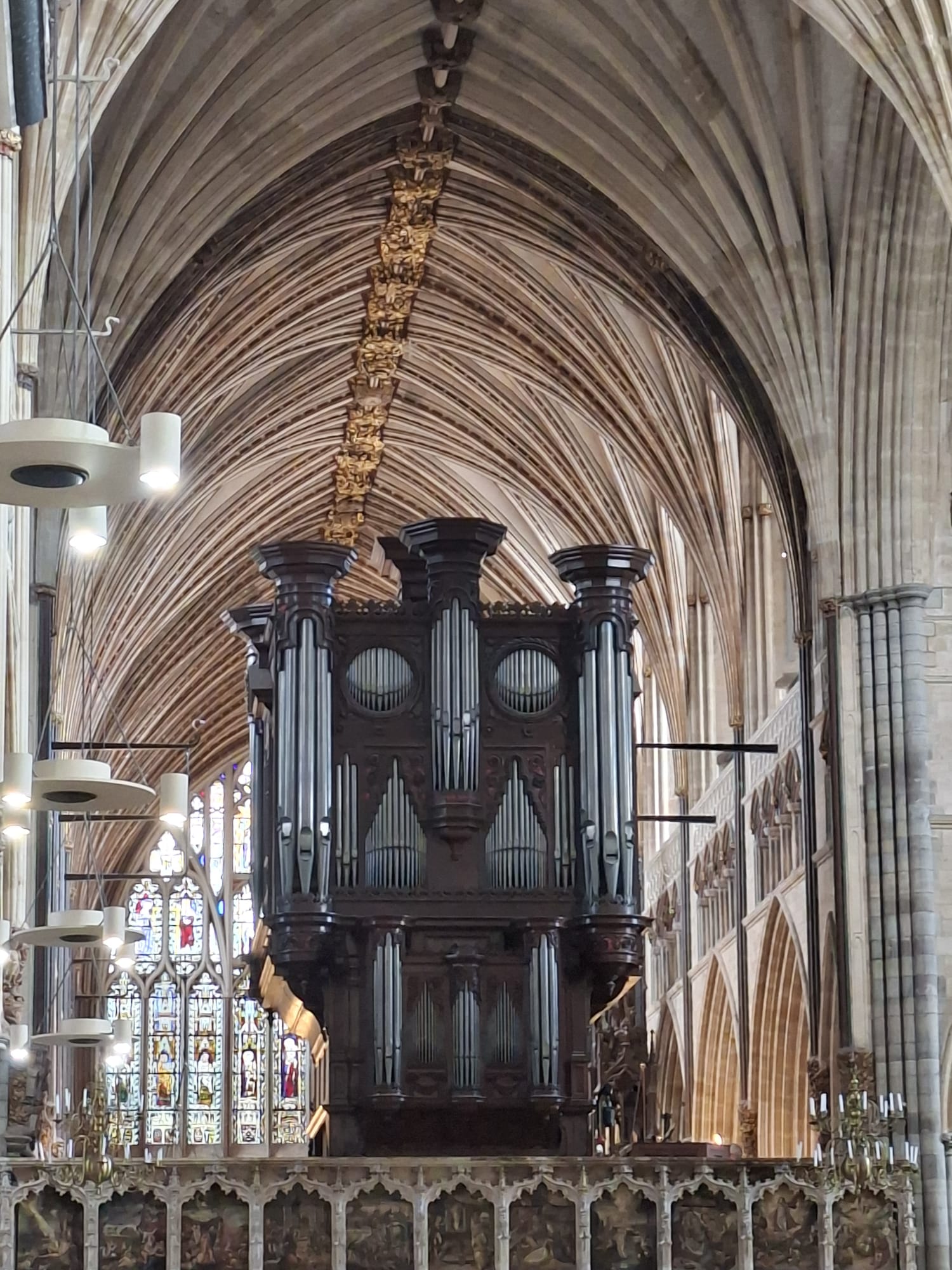

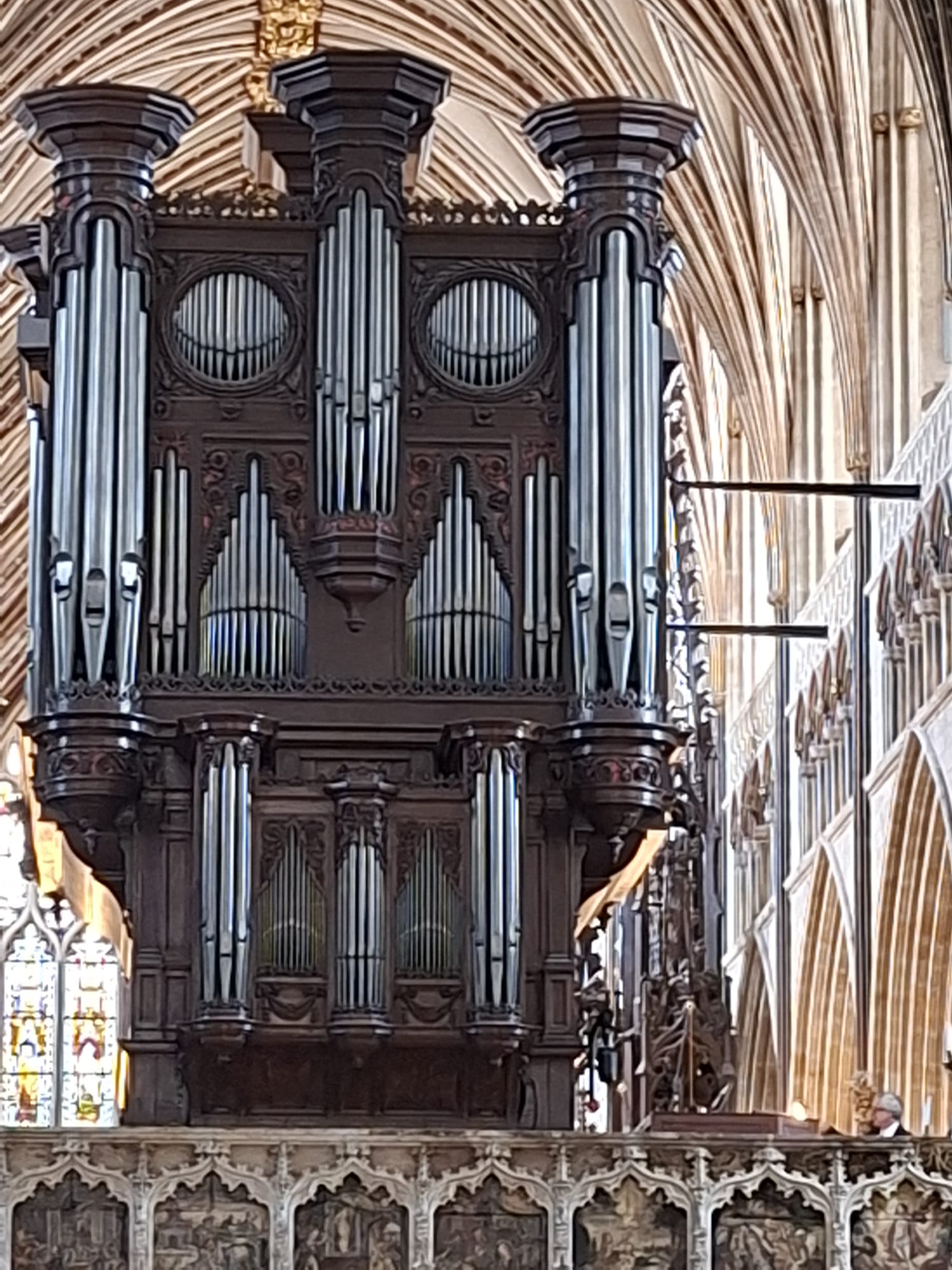

organ case from John Loosmore 1665,
several changes between 1665 and 1891,
rebuilt and enlarged by H. Willis 1891,
rebuilt and enlarged by Harrison & Harrison 1932/1933/1965

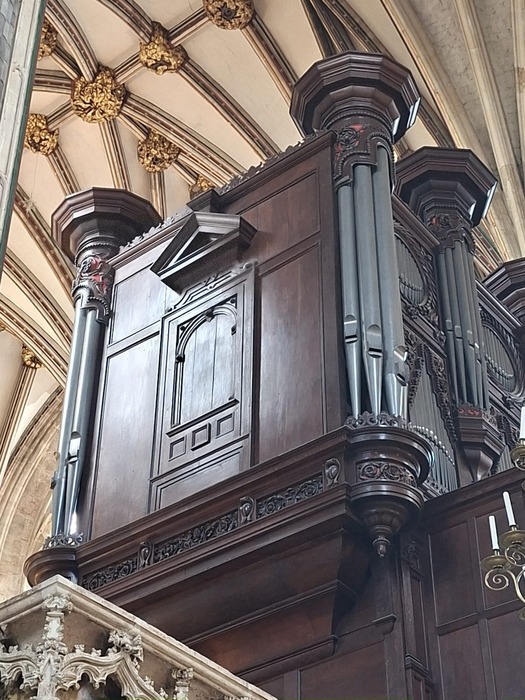

new section installed in the Minstrels’ Gallery in 2002
IV+P. Photos 1995.
rebuilt by Harrison & Harrison 2014
The stoplist to 2014:
(*: C-G from Violone/Pedal)
GREAT (C – a3) 58 TOETSEN:
Double Open Diapason 16 *
Open Diapason I 8
Open Diapason II 8
Stopped Diapason 8
Octave 4
Principal 4
Harmonic Flute 4
Twelfth 2 2/3
Fifteenth 2
Mixture IV rks
Sharp Mixture III rks
Double Trumpet 16
Trumpet 8
Clarion 4
SWELL (C – a3) 58 TOETSEN:
Quintadena 16
Open Diapason 8
Stopped Diapason 8
Salicional 8
Voix Celestes 8 (C-H in Salicional)
Principal 4
Flute 4
Twelfth 2 2/3
Fifteenth 2
Mixture IV rks
Hautboy 8
Tremulant
Contra Fagotto 16
Cornopean 8
Clarion 4
CHOIR (C – a3) 58 TOETSEN:
Lieblich Bourdon 16 (C-H in Bourdon/Pedal)
Lieblich Gedackt 8
Viola 8
Lieblich Flute 4
Nazard 2 2/3
Open Flute 2
Tierce 1 3/5
Larigot 1 1/3
Clarinet 8
Tremulant
SOLO (C – a3) 58 TOETSEN:
Viole d’Orchestre 8
Claribel Flute 8
Viole Céleste 8 (c0)
Harmonic Flute 4
Piccolo 2
Corno di Bassetto 8
Orchestral Oboe 8
Vox Humana 8
Tremulant
Tuba 8
Trompette 8 (from Ministrel Organ)
MINISTREL ORGAN, MANUAL (C – a3) 58 TOETSEN:
Bourdon 16
Open Diapason 8
Stopped Diapason 8
Principal 4
Fifteenth 2
Mixture V rks
Trompette 8
Ministrel Organ, Pedal
Bourdon 16 (from Bourdon)
PEDAL (C-f1) 30 TOETSEN:
Contra Violone 32 **
Open Diapason 16
Violone 16
Bourdon 16
Quintadena 16 (from Swell)
Octave 8′ (ext Open Diapason)
Violoncello 8
Flute 8 (ext Bourdon)
Fifteenth 4
Octave Flute 4 (ext Bourdon)
Mixture II rks
Contra Trombone 32 (ext)
Trombone 16
Tromba 8 (ext Trombone)
KOPPELINGEN: Choir-Pedal, Great-Pedal, Swell-Pedal, Solo-Pedal, Choir Octaves alone, Swell-Choir, Solo-Choir,
Great Reeds on Choir, Great Reeds on Pedal, Choir-Great, Swell-Great, Solo-Great,
Swell Octave, Swell Sub Octave, Unison Off, Solo-Swell, Solo Octave, Solo Sub Octave, Solo Unison Off,
Min.-Choir, Min.-Great, Min.-Solo
SPEELHULPEN: several combination accessories
electro-pneumatic action
wind pressures up to 15 inches (pipes) and up to 9 inches (action)
**: extension Violone; lowest sixteen pipes located in the South
transept
