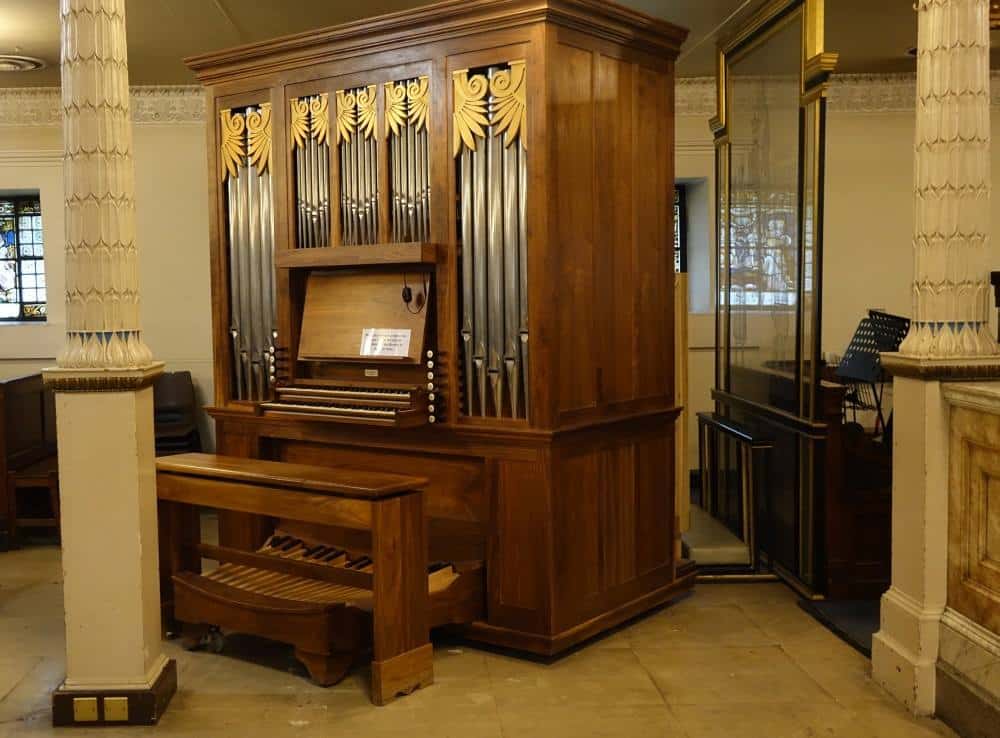

London, Church of Saint Pancras, Euston Road / Upper Woburn Place, Chamber Organ

Foto: Andrew & Jane Wood © 2017

Peter Collins bouwde in 2001 een nieuw Chamber Organ met 2 manualen, Radiaal concaaf pedaalklavier, mechanische tractuur en sleepladen voor de Church of Saint Pancras in London (Middlesex). Het orgel is transponeerbaar en heeft 2 standen. a’ = 415 of 440 Hz.

Dispositie:

Department and Stop list

Pedal Key action Tr  Stop action Me  Compass-low C  Compass-high f1  Keys 30
1 Sub Bass 16 12 pipes, 13-30 from Ch Fl
2 Gedact 8 transmission from Ch Fl
3 Principal 4 transmission from Man I
4 Gemshorn 2 transmission from Man II
Manual I Key action Tr  Stop action Me  Compass-low   Compass-high   Keys 58
5 Open Diapason 8 46 pipes, 12 grooved Ch Fl
6 Chimney Flute 8 58 pipes
7 Principal 4
8 Mixture II 116 pipes
Manual II Key action Tr  Stop action Me  Compass-low C  Compass-high a3  Keys 58
9 Stopped Diapason 8 46 pipes, 12 grooved Ch Fl
10 Stopped Diapason 8 Eng. Red, A=415, 57 notes
11 Flute 4 58 pipes
12 Flute 4
13 Gemshorn 2 58 pipes
14 Sesquialtera II 116 pipes
15 Tremulant Whole Organ

Console

Console type  Integral   Stop type  Drawstops   Pedalboard  Radiating concave

Stop names engraved in black, except A=415 stops which are red;
Manual Couplers operated by drawing the upper keyboard forwards or pushing it
backwards; Tremulant operated by pedal;

Couplers

I to II

II to I
