Foto: Kenneth Tickell-organs

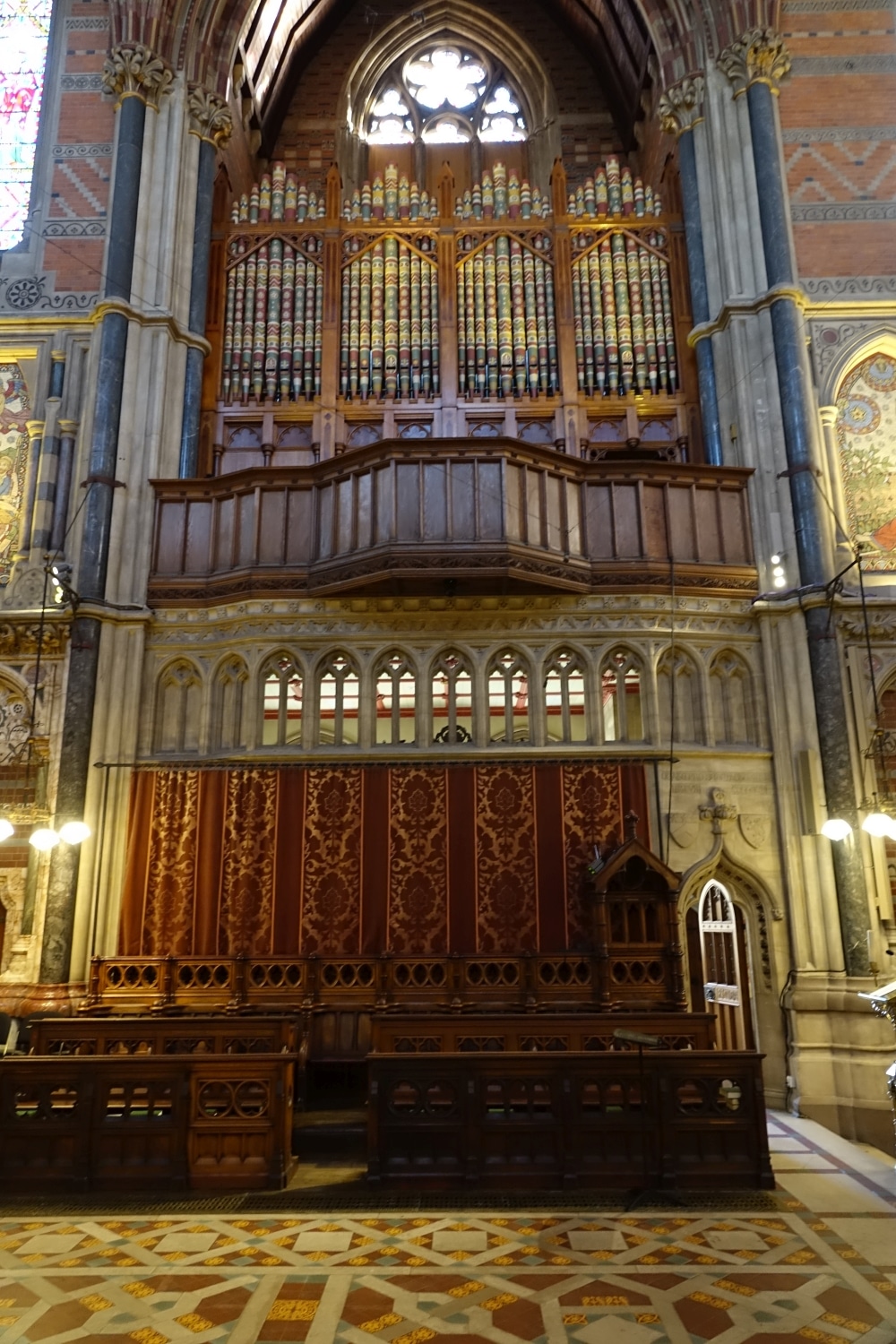

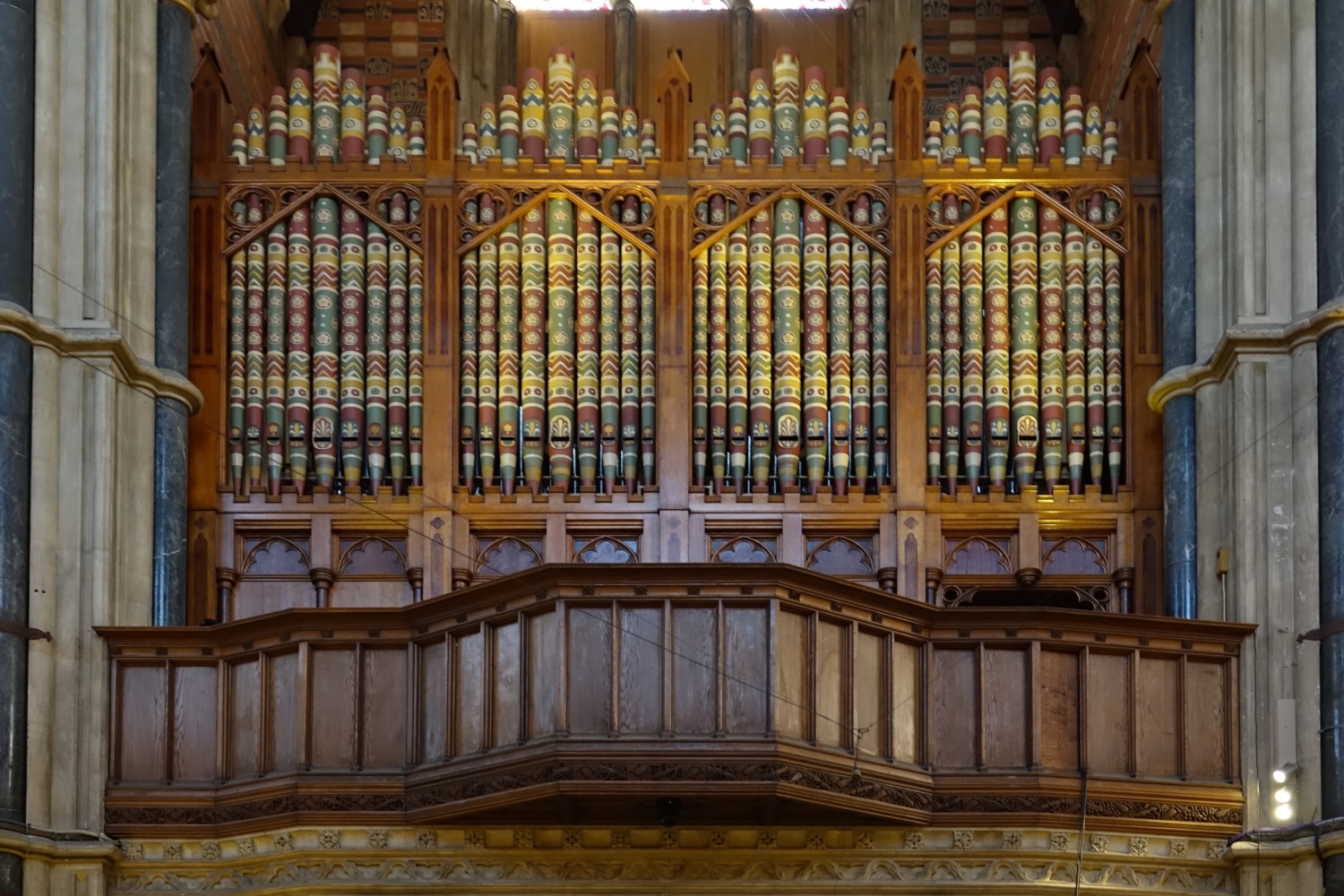

In 2011 bouwde Kenneth Tickell Organs een nieuw sleepladen-orgel met gedecoreerde frontpijpen, mechanische toetstractuur en elektrische registertractuur voor Keble College in Oxford. Het pedaalklavier is radiaal concaaf.
Dispositie:
Solo-Choir: C – a3
Open Flute 8′
Viola 8′
Flauto Traverso 4′
Fugara 4′
Nazard 2 2/3′
Flageolet 2′ Open Wood
Tierce 1 3/5′
Cor Anglais 16′
Clarinet 8′
Vox Humana 8′
Tremulant
Great: C – a3
Double Diapason 16′ Stopped
Open Diapason 8′
Stopped Diapason 8′ Wood
Gamba 8′ Tapered
Principal 4′
Wald Flute 4′ Open Wood
Fifteenth 2′
Sesquialtera II – 12:17
Mixture IV – 19:22:26:29
Trumpet 8′
Swell: C – a3 Enclosed
Open Diapason 8′
Gedackt 8′
Salicional 8′
Vox Angelica 8′
Principal 4′
Rohrflute 4′
Fifteenth 2′
Mixture III-IV 15:19:22:26
Contra Fagotto 16′
Cornopean 8′
Oboe 8′
Clarion 4′
Tremulant
Bombarde: C – a3
Posaune 8′
Cornet V
Pedal: C – f1
Open Wood 16′
Bourdon 16′
Violone 16′
Quint 10 2/3′
Octave 8′
Bass Flute 8′
Fifteenth 4′
Mixture III 17:19:22
Trombone 16′
Couplers:
Swell to Pedal
Swell to Great
Great to Pedal
Solo to Pedal
Bombarde to Pedal
Swell to Solo
Bombarde to Great
Solo to Great
Accessories:
2 balanced Swell pedals
Great & Pedal Combinations coupled
Generals on Swell toe pistons
6 divisional pistons to each manual
6 toe pistons to Pedal
9 divisional memory levels
250 General memory levels
Stepper
Further information:
Organ Building Vol 12 (2012) p.57f
Mixture compositions:-
Great Mix. IV
c1 19.22.26
g#9 15.19.22.26
g#21 12.15.19.22
c37 8.12.15.19
c#50 1. 8.12.15
Great Sesquialtera II
c1 12.17
Bombarde Cornet V
g20 1.8.12.15.17
Swell Mixture III-IV
C1 15.19.22
e17 12.15.19
f#31 8.12.15.19
g#45 1. 8.12.15
Pedal Mixture III
C1 17.19.22
Wind Pressures:-
Great 70 mm
Swell 75 mm
Solo/Choir 80 mm
Bombarde 125 mm
Pedals 95 mm
