Southampton, Guildhall

Foto’s: Mpr

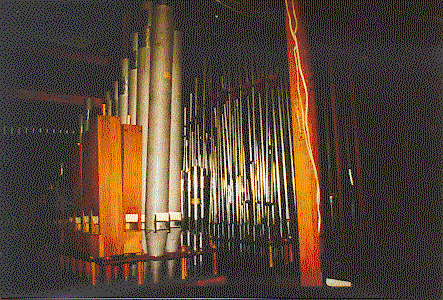

In 1937 bouwde John Compton Organ Co. een nieuw theater-orgel voor de Guildhall in Southampton (Hampshire). Het is in 2008 gerestaureerd door HWS Associates. Het orgel is opgesteld in diverse orgelkamers boven het podium. Het pedaalklavier is radiaal concaaf. Het orgel is gebouwd volgens het unit-systeem en heeft elektrische tractuur. Er zijn 2 speeltafels. Het één heeft het uiterlijk van een theaterorgel en het andere van een concertorgel.

Dispositie:

Accomp’mt: C – c4
Vox Humana 16′
Contra Viole 16′
Bourdon 16′
Tromba 8′
Trumpet 8′
Diapason 8′
Tibia 8′
Vox Humana 8′
Horn 8′
Fagotto 8′
Hautboy 8′
Clarinet 8′
Oboe 8′
Cello 8′
Viole 8′
Viole Celeste 8′
Strings 8′
Viola da Gamba 8′
Vox Celeste 8′
Flute 8′
Octave 4′
Tibia 4′
Vox Humana 4′
Hautboy 4′
Cello 4′
Violina 4′
Viole Celeste 4′
Viole 4′
Flute 4′
Nazard 2 2/3′
Fifteenth 2′
Flautino 2′
Marimba 8′
Vibraphone 4′
Xylophone Tap 4′
Snare Drum
Tom-Tom
Block
Tambourine
Castenets
Sleigh Bells
Sand Block
Horn 8′ – 2nd touch
Tibia 8′ – 2nd touch
Traps – 2nd touch

Great: C – c4
Trombone 16′
Trumpet 16′
Diaphone 16′
Diapason 16′
Tibia 16′
Violone 16′
Harmonic Trumpet 8′
Tromba 8′
Trumpet 8′
Posaune 8′
Diaphone 8′
Diapason 8′
Tibia 8′
Vox Humana 8′
Horn 8′
Fagotto 8′
Hautboy 8′
Clarinet 8′
Oboe 8′
Cello 8′
Viole Celeste 8′
Flute 8′
Tromba 4′
Clarion 4′
Diapason 4′
Tibia 4′
Viola 4′
Celestina 4′
Fifteenth 2′
Viole Fifteenth 2′
Mixture IV
Xylophone Tap 4′
Xylophone Roll 4′
Glockenspiel 4′
Orchestral Bells

Solo: C – c4
Trombone 16′
Tibia 16′
Vox Humana 16′
Bassoon 16′
Bourdon 16′
Tromba 8′
Harmonic Trumpet 8′
Tibia 8′
Vox Humana 8′
Clarinet 8′
Oboe 8′
Cello 8′
Viole 8′
Viole Celeste 8′
Strings 8′
Flute 8′
Clarion 4′
Tibia 4′
Vox Humana 4′
Violin 4′
Violin Celeste 4′
Flute 4′
Tibia Twelfth 2 2/3′
Flute Twelfth 2 2/3′
Ocarina 2′
Flautina 2′
Tierce 1 3/5′
Xylophone Tap 4′
Xylophone Roll 4′
Glockenspiel 4′
Orchestral Bells 4′
Melotone 8′ – elektronisch
Melotone 4′ – elektronisch
Melo Twelfth 2 2/3 – elektronisch
Super Melo 2′ – elektronisch
Krummhorn 8′ – elektronisch
Syntheton 8′ – elektronisch
Echo Control
Chimes – elektronisch
Carrillon – elektronisch
Vibrato

Orchestral: C – c4
Tuba 16′
Trombone 16′
Posaune 16′
Fagotto 16′
Clarinet 16′
Bassoon 16′
Contra Viole 16′
Tuba 8′
Harmonic Trumpet 8′
Tromba 8′
Posaune 8′
Trumpet 8′
Fagotto 8′
Tibia 8′
Vox Humana 8′
French Horn 8′
Hautboy 8′
Clarinet 8′
Oboe 8′
Cor Anglais 8′
Cello 8′
Viole 8′
Viole Celeste 8′
Harmonic Flute 8′
Tuba 4′
Tromba 4′
Posaune 4′
Tibia 4′
Hautboy 4′
Violin 4′
Harmonic Flute 4′
Nazard 2 2/3′
Piccolo 2′

Pedal: C – g1
Posaune 32′
Diaphone 32′
Bourdon 32′
Tuba 16′
Posaune 16′
Tromba 16′
Diaphone 16′
Diapason 16′
Tibia 16′
Violone 16′
Salicional 16′
Bourdon 16′
Fagotto 16′
Clarinet 16′
Cor Anglais 16′
Tuba 8′
Tromba 8′
Trumpet 8′
Diaphone 8′
Tibia 8′
Clarinet 8′
Cor Anglais 8′
Strings 8′
Flute 8′
Tuba 4′
Tibia 4′
Flute 4′
Bass Drum Tap F
Bass Drum Tap P
Drum Roll
Snare Drum
Cymbale Tap
Cymbale Crash
Triangle
Traps to 2nd Touch

Couplers:
Great to Pedal
Accompaniment to Pedal
Solo to Pedal
Orchestral to Pedal
Great Octave to Accompaniment
Solo to Accomp’t (2nd Touch)
Solo Octave to Accomp’y (2nd Touch)
Accompaniment Octave
Solo to Great (2nd Touch)
Orchestral to Great (2nd Touch)
Orchestral to Great
Solo Octave
Solo Sub Octave
Orchestral to Solo
Orchestral Octave
Orchestral Sub Octave
Orchestral Unison Off
Accompaniment Traps to Great
Accompaniment Traps to 2nd touch

Accessories:
Pedal pistons for Syren, Auto, Firebell, Birds, Cymbale Roll,
Snare Drum, Cymbale Crash & Grand Crash (on 2nd touch);
10 adjustable double touch thumb pistons to each manual
4 double touch pistons to Pedal couplers
General Cancel
6 toe pistons to Pedal
Setter Toe piston
3 balanced Swell pedals with indicators
Balanced General Crescendo pedal
Tremulants (by stop key):
Horn & Harmonic Trumpet
Posaune, Tromba & Diapason
Fagot-tone (sic) & Trumpet
Cor Anglais & Mixture
Vox, H Flute & Tibia
Hautboy, Celestes, R Flute, Gamba & Flauto
Oboe, Clarinet, Celeste & Strings
Stopt Flute;
Stop Key for “Melotone Off”;
Toggle switches for Swell Shutters Coupled, Surf & Aeroplane effects;
7 toggle switches operating as ventils
6 Stop keys for “Pedals to Manual Pistons 2nd” numbered 1 to 6
Voltmeter;

Further information:
Ranks:-
Chamber 1 (Great & Pedal)
A1 Diapason I, from 32ft C, 109 notes
B1 Diapason II from 16ft C, 97 notes
C1 Diapason IIIa from 2 2/3ft G, 73 notes
D1 Diapason III from 8ft F#, 67 notes
E1 Diapason IV from 8ft C, 85 notes
F1 Mixture I 12.15 73 notes
G1 Mixture II 17.19.22 73 notes
H1 Stopped Diapason from 16ft C, 85 notes
J1 Hohl Flute from 4ft C, 61 notes
K1 Posaune I from 32ft C, 85 notes
L1 Posaune II from 2 2/3ft G, 54 notes
M1 Tromba from 8ft C, 73 notes
(Choir)
N1 Gedeckt from 8ft C, 85 notes
P1 Gemshorn from 4ft C, 73 notes
Q1 Salicional from 16ft C, 97 notes
R1 Vox Angelica from 4ft C, 61 notes
S1 Harmonics 12.17.21, 61 notes
T1 Cor Anglais from 16ft C, 73 notes
Chamber 2 (Swell)
A2 Geigen from 8ft C, 73 notes
B2 Rohr Flöte from 8ft C, 85 notes
C2 Flauto Traverso from 2 2/3ft G, 54 notes
D2 Viola da Gamba from 16ft C, 109 notes
E2 Voix Celeste from 4ft C, 61 notes
F2 Mixture I 12.15 73 notes
G2 Mixture II 17.19.22 73 notes
H2 Hautboy from 8ft C, 61 notes
J2 Fagottone from 16ft C, 85 notes
K2 Trumpet from 8ft C, 73 notes
L2 Horn from 8ft C, 61 notes
Swell chamber also contains chimes and effects;
Chamber 3 (Solo)
A3 Tibia from 8ft C,85 notes
B3 Harmonic Flute from 4ft C, 73 notes
C3 Violoncello from 8ft C, 73 notes
D3 Viole from 8ft C, 73 notes
E3 Viole Celeste from 8ft C, 73 notes
F3 Strings 2 ranks from 4ft C, 49 notes
G3 Clarinet from 16ft C, 73 notes
H3 Orchestral Oboe from 8ft C, 61 notes
J3 Vox Humana from 8ft C, 61 notes
K3 Harmonic Trumpet from 8ft C, 61 notes
L3 Tuba from 16ft C, 85 notes
Solo chamber also contains Orchestral Bells, Xylophone, and the speaker of the
electronic Melotone unit which also provides the Solo Carillon & Choir Celesta;
MaF says Melotone (horn) speaker is in chamber 4 (unenclosed);

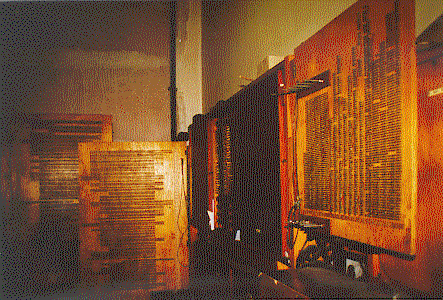

Melotone generator rack in relay room;
Chamber 4
A4 Sub Bass from 32ft E, 52 notes
The Organ 346 Nov 2008 – Jan 2009 p.32-34
Choir & Organ May/June 2010 p.55-57
