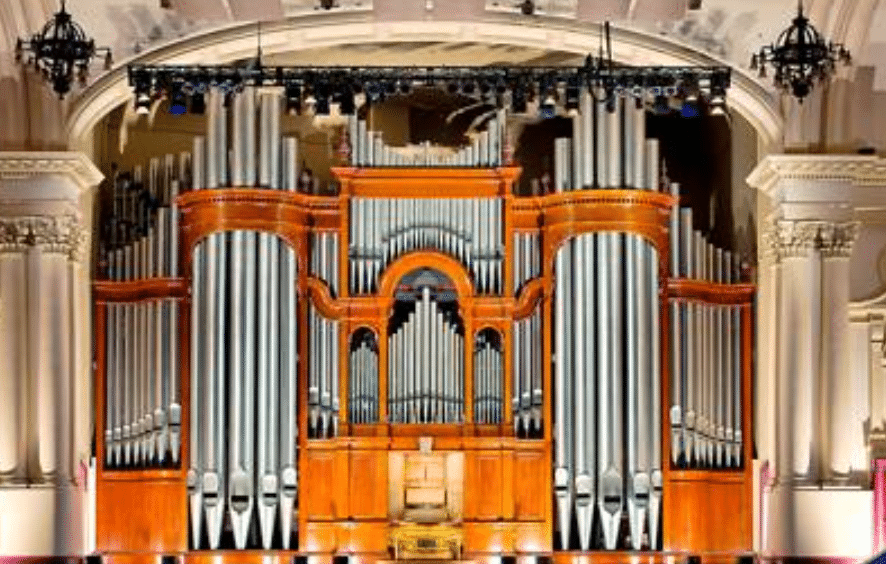

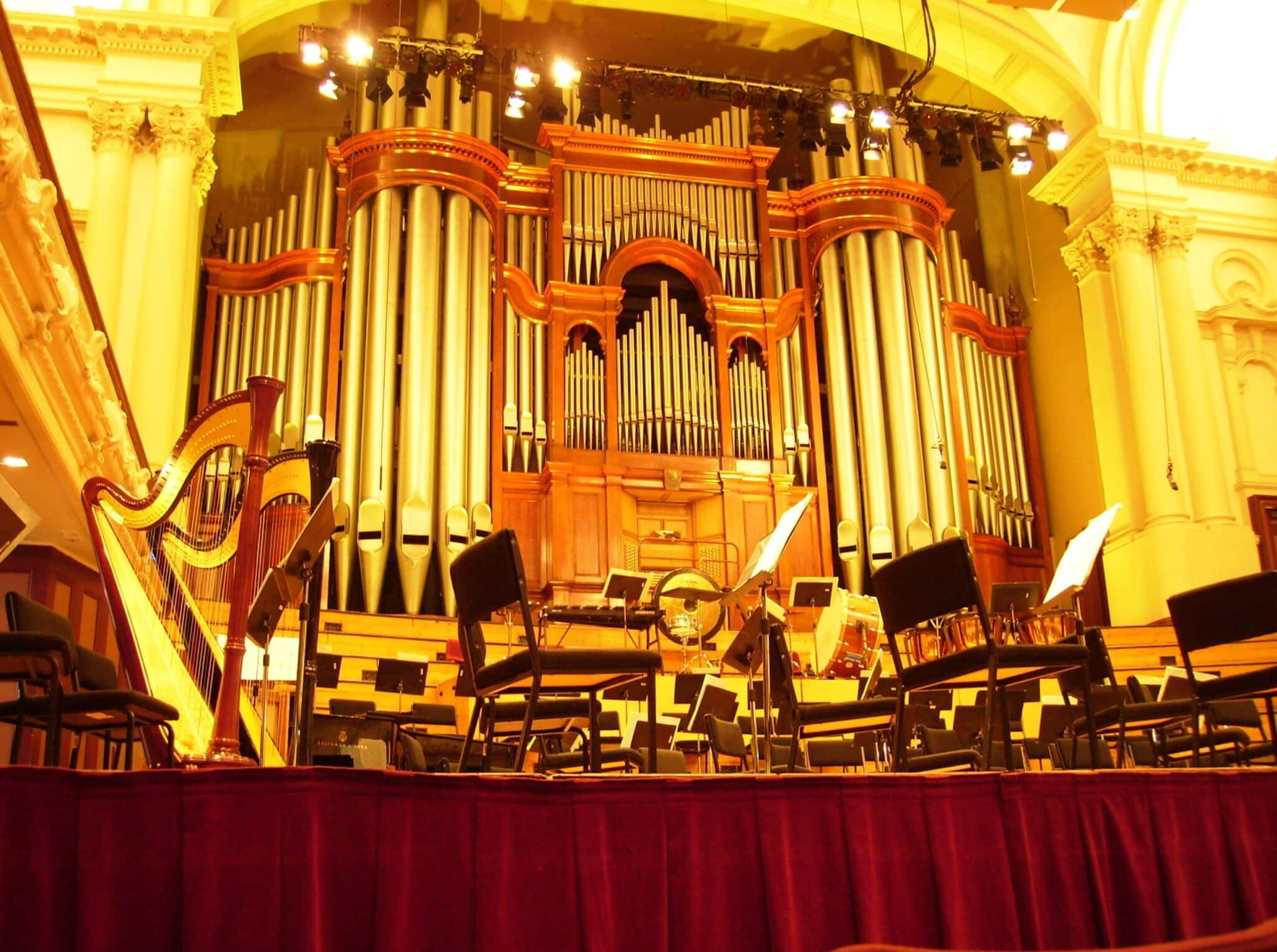

In de Town Hall in Auckland (Auckland) New Zealand, staat een groot 4 manuaals sleepladen-orgel met een vrij pedaal en elektrische tractuur dat in 2009 is gebouwd door Klais Orgelbau
Dispositie:
GREAT ORGAN (C-c4): 61 TOETSEN Double Open Diapason 16′, Bourdon 16′, Large Open Diapason 8′, Open Diapason 8′, Geigen Diapason 8′, Hohl Flute 8′, Stopped Diapason 8′, Octave 4′, Wald Flute 4′, Octave Quint 2 2/3′, Superoctave 2′, Open Flute 2′, Seventeenth 1 3/5′, Full Mixture 3 ranks (15.19.22), Sharp Mixture 4 ranks (19.22.26.29), Trombone 16′, Tromba 8′, Octave Tromba 4′.
CHOIR ORGAN (C-c4): 61 TOETSEN Contra Salicional 16′, Open Diapason 8′, Rohr Flute 8′, Unda Maris 8′, Echo Dulciana 8′, Viol d’Orchestre 8′, Voix Celeste 8′, Gemshorn 4′, Flauto Traverso 4′, Fifteenth 2′, Piccolo 2′, Mixture 3 ranks (19.22.26), Cor Anglais 16′, Hautbois 8′, Corno di Bassetto 8′, Tremulant.
SWELL ORGAN (C-c4): 61 TOETSEN Bourdon 16′, Open Diapason 8′, Violin Diapason 8′, Salicional 8′, Vox Angelica 8′, Lieblich Gedeckt 8′, Principal 4′, Lieblich Flute 4′, Nazard 2 2/3′, Fifteenth 2′, Octavin 2′, Tierce 1 3/5′, Larigot 1 1/3′, Mixture 3 ranks (17.19.22), Furniture 3-4 ranks (22.26.29), Double Trumpet 16′, Cornopean 8′, Oboe 8′, Clarion 4′, Tremulant.
SOLO ORGAN (C-c4): 61 TOETSEN Flûte Harmonique 8′, Ko-auau 8′, Viola da Gamba 8′, Viola Celeste 8′, Concert Flute 4′, Viola 4′, Pu-ka-ea 8′, Orchestral Clarinet 8′, Orchestral Oboe 8′, Vox Humana 8′, Tremulant.
BOMBARD ORGAN (C-c4): 61 TOETSEN Contra Tuba 16′, Orchestral Trumpet 8′, Tuba Mirabilis 8′, Tuba Clarion 4′.
PEDAL (C-g1): 32 TOETSEN Gravissima 64′ – acoustic, Double Open Wood 32′, Double Open Metal 32′, Open Wood 16′ – extension, Open Metal 16′ – extension, Open Diapason 16′ – from Great, Bourdon 16′, Salicional 16′ – from Choir, Octave Wood 8′ – extension, Principal 8′, Stopped Flute 8′, Super Octave 4′, Mixture 5 ranks (17.19.22.26.29), Contra Posaune 32′, Ophicleide 16′, Posaune 16′ – extension, Trumpet 8′, Clarion 4′.
KOPPELINGEN: Choir to Great, Swell to Great, Solo to Great, Great to Choir, Swell to Choir, Solo to Choir, Bombard on Choir, Solo to Swell, Great to Pedal, Choir to Pedal, Swell to Pedal, Solo to Pedal, Bombard on Pedal, Great Reeds on Pedal, Great Reeds on Choir, Great and Pedal Pistons Coupled, Pedal on Swell Pistons, Choir Octave, Choir Suboctave, Choir Unison Off, Swell Octave, Swell Suboctave, Swell Unison Off, Solo Octave, Solo Suboctave, Solo Unison Off.
SPEELHULPEN: Setzer Combinations, General Cancel, Sequencer.
