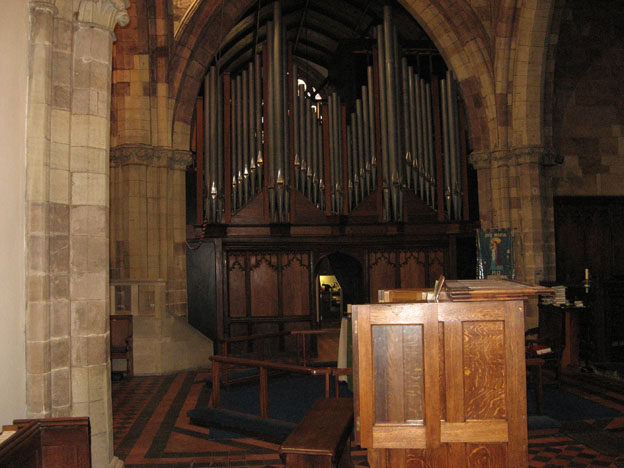

Pictures: Robert Knol © 2008
Case redisigned by Cartwrights (same original material)
The Organ was built, new, by Nicholson & Company, Worcester in 1927 and was installed over the West Door, with the console in the South Transept. In 1965 it was moved and rebuilt, again by Nicholson’s, in S. John’s Chapel, together with the console.
In 1996 the organ was rebuilt, in the North Transept, by Cartwright & Cartwright of Audley, Staffordshire, and fitted with new electro-pneumatic actions. The couplers and piston action are controlled by separate microprocessors. The new detached console is placed on a mobile platform situated in the South Transept. At the rebuilding the opportunity was taken to enlarge the instrument with tonal alterations as follows:
Swell Organ: Old Mixture 12.17.19 recast to 17.19.22.
Great Organ: Trumpet –Clarion 85-note unit on new chest. Mixture 19.22.26: new pipework on old Trumpet slide.
Choir Organ: Clarion-Trumpet borrowed from Great. Cremona reinstated (The original Clarinet had been removed in the 1965 rebuild).
Principal 4’, old Open Diapason 8’ transposed 1 octave with new top octave of pipes.
New pipework Stopped Diapason 8’ replacing old Claribel Flute 8’.
Bron: Info kerk
The Stoplist:
GREAT (C – c4) 61 TOETSEN: Double Open Diapason 16′, Open Diapason 1′, Open Diapason 2′, Clarabella 8′, Principal 4′, Harmonic Flute 4′, Twelfth 2 2/3′, Fifteenth 2′, Mixture 3 ranks (19.22.26), Trumpet 8′, Clarion 4′ – extension.
CHOIR (C – c4) 61 TOETSEN: Stopped Diapason 8′, Dulciana 8′, Principal 4′, Wald Flute 4′, Flageolet 2′, Larigot 1 1/3′, Trumpet 8′, Cremona 8′, Clarion 4′ – extension, Tremulant.
SWELL (C – c4) 61 TOETSEN: Bourdon 16′, Open Diapason 8′, Lieblich Gedackt 8′, Echo Gamba 8′, Voix Celeste 8′ (TC), Principal 4′, Fifteenth 2′, Mixture 3 ranks (17.19.22), Cornopean 8′, Oboe 8′, Tremulant.
PEDAL (C – f1) 30 TOETSEN: Open Diapason 16′, Bourdon 16′, Quint 10 2/3′, Principal 8′, Bass Flute 8′, Fifteenth 4′, Flute 4′, Trombone 16′ – extension, Trumpet 8′, Clarion 4′ – extension.
KOPPELINGEN: Choir to Great, Swell to Great, Great to Pedal, Choir to Pedal, Swell to Pedal.
