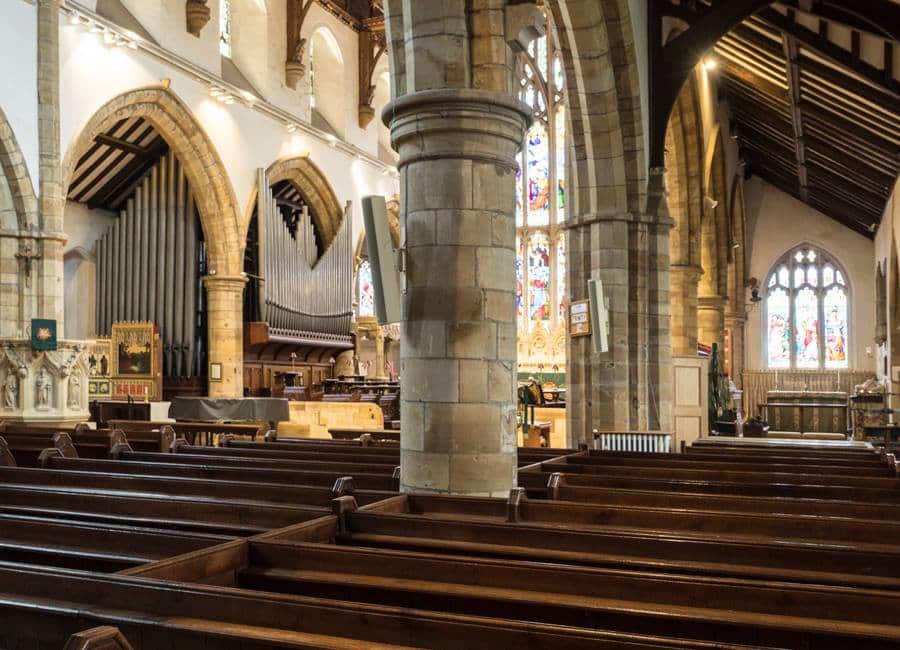

In 1865 bouwde Henry Willis & Sons een nieuw mechanisch sleepladen-orgel voor de Church of Saint Mary the Virgin in Horsham (West Sussex). Het werd in 1882 door dezelfde firma gerepareerd en schoongemaakt. In 1909 werd het orgel door Norman & Beard herbouwd. Daarbij werd een nieuwe pneumatische tractuur aangelegd. In 1955 werd het omgebouwd door Henry Willis & Sons. In 1992 volgde een ombouw door J.W. Walker & Sons. De tractuur van het kegelladen-orgel is tegenwoordig elektro-pneumatisch. Het pedaalklavier is radiaal concaaf en er zijn 2062 orgelpijpen. De stemming is evenredig zwevend en de toonhoogte is a’ = 440 Hz.
Dispositie:
Pedal | C – f1 | |||
1 | Sub Bass | 32 | lowest 12 resultant | |
2 | Open Bass | 16 | ||
3 | Violone | 16 | ||
4 | Bordun | 16 | ||
5 | Principal | 8 | ||
6 | Flute | 8 | ||
7 | Choral Bass | 4 | ||
8 | Stopped Flute | 4 | ||
9 | Ophicleide | 16 | ||
Choir | C – g3 | |||
10 | Viola | 8 | ||
11 | Dulciana | 8 | ||
12 | Rohr Gedackt | 8 | ||
13 | Nason Flute | 4 | ||
14 | Nazard | 2 2/3 | ||
15 | Flautino | 2 | ||
16 | Tierce | 1 3/5 | ||
Great | C – g3 | |||
17 | Double Diapason | 16 | ||
18 | Open Diapason No.1 | 8 | ||
19 | Open Diapason No.2 | 8 | ||
20 | Claribel Flute | 8 | ||
21 | Principal | 4 | ||
22 | Gemshorn | 4 | ||
23 | Quartane | II | 12.15 | |
24 | Sesquialtera | III | 17.19.22 | |
25 | Posaune | 8 | ||
26 | Clarion | 4 | ||
Swell | C – g3 Enclosed | |||
27 | Open Diapason | 8 | ||
28 | Lieblich Gedact | 8 | ||
29 | Aeoline | 8 | ||
30 | Voix Celestes | 8 | Tc | |
31 | Principal | 4 | ||
32 | Mixture | III | 15.19.22 | |
33 | Waldhorn | 16 | ||
34 | Trumpet | 8 | ||
35 | Hautboy | 8 | ||
36 | Clarion | 4 | ||
37 | Tremolo |
Couplers:
Swell to Pedal
Swell to Great
Swell to Choir
Swell octave
Swell suboctave
Choir to Great
Choir to Pedal
Great to Pedal
Great Reeds to Choir
Accessories:
6 thumb pistons to each manual;
6 general combination pistons;
6 toe pistons to Swell (dup),
6 toe pistons to Pedal;
rev. thumb pistons: sw-gt, ch-gt, sw-ch, sw-pd, gt-pd, ch-pd;
rev. toe pistons: sw-gt, gt-pd;
Great and Pedal combinations coupled;
Generals on Swell toe pistons;
balanced swell pedal (mechanical linkage);
general cancel piston; 1 setter piston;
switch for 8 levels of memory;
