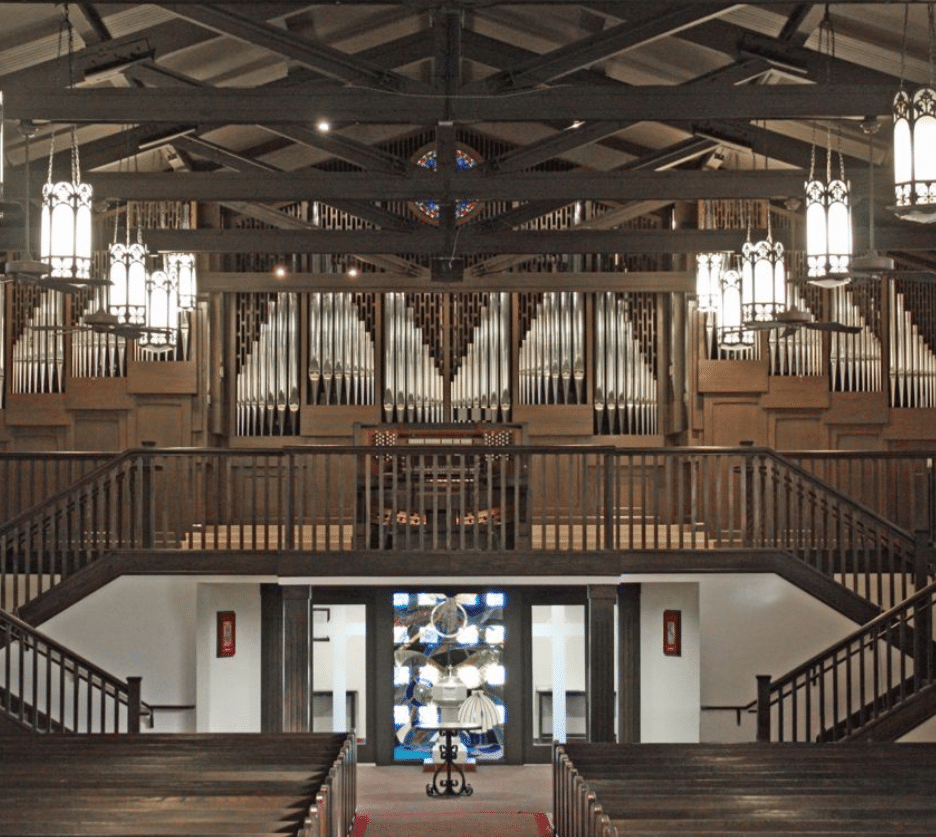

In 2009 bouwde Schantz Organ Company opus 2294. Een nieuw sleepladen-orgel met elektrische tractuur, 3234 pijpen, 72 registers, 55 ranks, 4 manualen en een vrij pedaal voor de Christ Church Episcopal in Las Vegas (Nevada) USA. Het pedaalklavier is radiaal concaaf.
Dispositie:
GREAT (C – c4) 61 TOETSEN: Violone 16′ – from Choir, Open Diapason 8′, Violine 8′ – from Choir, Bourdon 8′, Harmonic Flute 8′ (TC), Principal 4′, Spire Flute 4′, Twelfth 2 2/3′, Fifteenth 2′, Seventeenth 1 3/5′, Chorus Mixture 4 ranks, Trumpet 8′, Tuba Major 8′ – from Choir, Trompette en Chamade 8′ – prepared, Tremulant, Chimes (25 tubes), Cymbelstern.
CHOIR (C – c4) 61 TOETSEN: Violone 16′, Violone 8′ – extension, Voce Umana 8′ (TC), Holzgedeckt 8′, Silver Flute 8′, Flute Celeste 8′ (TC), Octave 4′, Koppelflöte 4′, Super Octave 2′, Larigot 1 1/3′, Full Mixture 4 ranks, Krummhorn 8′, Tremulant, Tuba Major 8′ – high pressure, Trompette en Chamade 8′ – prepared, from Great.
SWELL (C – c4) 61 TOETSEN: Chimney Bass 16′, English Diapason 8′, Viola 8′, Viola Celeste 8′, Voix Celeste 8′ (2 ranks) (from g°), Chimney Flute 8′ – extension, Principal 4′, Open Flute 4′, Nazard 2 2/3′, Octavin 2′, Tierce 1 3/5′, Plein Jeu 4 ranks, Bassoon 16′, Trumpet 8′, Oboe 8′ – extension, Rohrschalmei 4′, Tremulant.
ANTIPHONAL (C – c4) 61 TOETSEN: Gedeckt 8′, Principal 4′, Rohrflöte 4′, Gemshorn 2′, Tremulant, Tuba Major 8′ – from Choir, Trompette en Chamade 8′ – prepared, from Great.
PEDAL (C – g1) 32 TOETSEN: Resultant 32′ – acoustic, Contra Bass 16′, Violone 16′ – from Choir, Subbass 16′, Chimney Flute 16′ – from Swell, Octavebass 8′ – extension, Violone 8′ – from Choir, Bourdon 8′ – extension, Chimney Flute 8′ – from Swell, Choral Bass 4′, Open Flute 4′, Grand Cornet 32′ – acoustic, Trombone 16′, Bassoon 16′ – from Swell, Tromba 8′ – extension, Clarion 4′ – extension, Oboe 4′ – from Swell, Tuba Major 8′ – from Choir, Trompette en Chamade 8′ – prepared, from Great, Trompette en Chamade 4′ – prepared, from Great.
