Foto’s: Andrew & Jane Wood © 2017

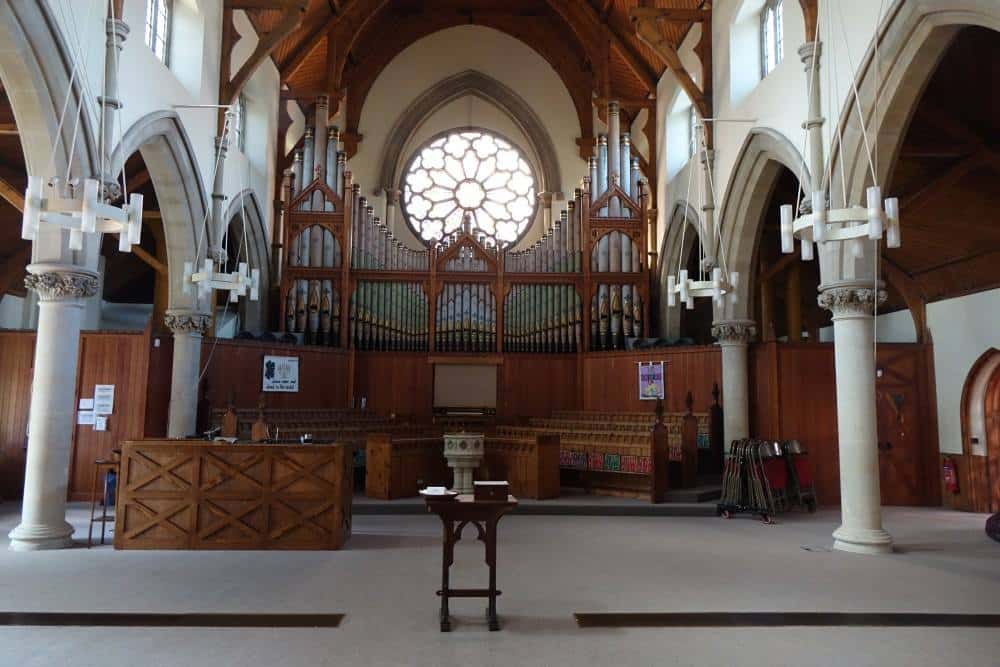

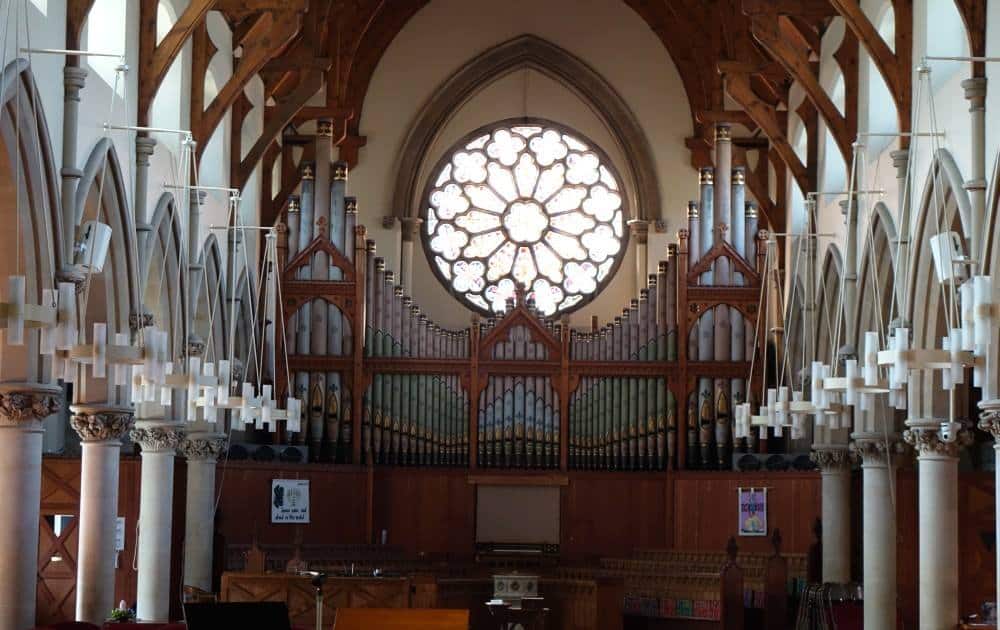

In 1872 bouwde Henry Willis een nieuw orgel met gedecoreerde frontpijpen voor de Christ Church in London-Chislehurst. In 1880 werd het instrument door dezelfde orgelbouwer omgebouwd. Hij voegde in 1882 nog diverse registers toe. In 1965 werd het omgebouwd door J.W. Walker & Sons.
In 1985 legde Martin K. Cross een nieuwe mechanische toetstractuur voor de manualen aan. Het Solo-organ werd omgebouwd en het pedaal werd uitgebreid. De registertractuur is elektrisch, de toetstractuur van het pedaal waarvan het klavier radiaal concaaf is, is elektro-pneumatisch.
Dispositie:
Pedal | C – f1 | |||
1 | Open Wood | 16 | ||
2 | Violone | 16 | ||
3 | Bourdon | 16 | ||
4 | Violoncello | 8 | ||
5 | Trombone | 16 | ||
Solo | C – g3 Enclosed | |||
6 | Vienna Flute | 8 | ||
7 | Stopped Flute | 4 | ||
8 | Flageolet | 2 | ||
9 | Larigot | 1 1/3 | ||
10 | Corno di Bassetto | 8 | ||
Great | C – g3 | |||
11 | Double Diapason | 16 | stp met | |
12 | Open Diapason 1 | 8 | ||
13 | Open Diapason 2 | 8 | ||
14 | Claribel Flute | 8 | ||
15 | Gamba | 8 | bottom 12 from Claribel | |
16 | Dulciana | 8 | ||
17 | Principal | 4 | ||
18 | Flute Harmonique | 4 | ||
19 | Twelfth | 2 2/3 | ||
20 | Super Octave | 2 | ||
21 | Mixture | III | 17.19.22 | |
22 | Trumpet | 8 | ||
Swell | C – g3 Enclosed | |||
23 | Double Diapason | 16 | ten c. | |
24 | Bourdon | 16 | bottom 12 only | |
25 | Open Diapason | 8 | ||
26 | Lieblich Gedackt | 8 | ||
27 | Dulciana | 8 | ||
28 | Principal | 4 | ||
29 | Flute Harmonique | 4 | ||
30 | Piccolo | 2 | ||
31 | Mixture | III | 15.19.22 | |
32 | Contra Oboe | 16 | ||
33 | Horn | 8 | ||
34 | Clarion | 4 |
Couplers:
Swell to Pedal
Swell to Great
Great to Pedal
Solo to Pedal
Swell to Solo
Accessories:
2 balanced Swell Pedals.
6 pistons to each department.
6 rev pistons (couplers and Ped Trombone)
General Cancel
