London (Neasden), Church of Saint Catherine with Saint Paul

Foto’s: Andrew & Jane Wood © 2018

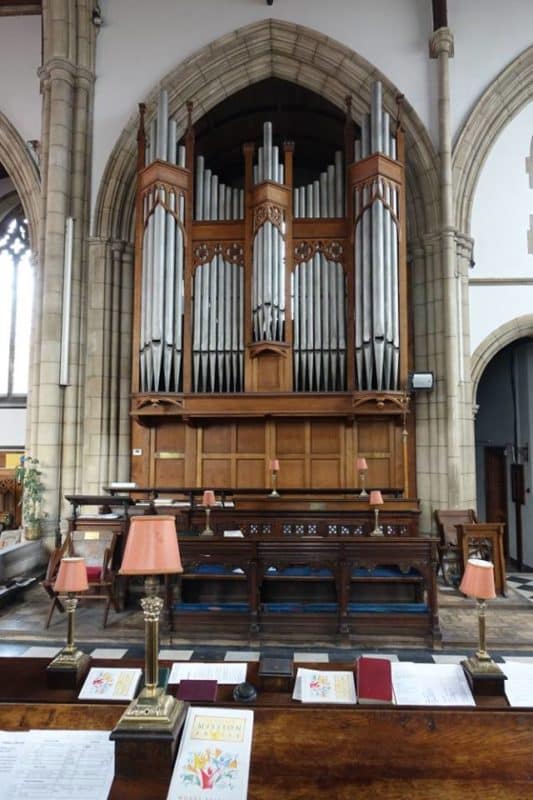

In 1934 bouwde Bishop & Son een nieuw elektro-pneumatisch kegelladen-orgel voor de Church of Saint Catherine with Saint Paul in London (Neasden) Middlesex. Het is in 1937 uitgebreid. Vermoedelijk door Bishop. Het pedaalklavier is radiaal concaaf.

Dispositie:

Pedal C – g1
1 Contra Bass 32
2 Open Diapason 16
3 Sub Bass 16
4 Lieblich Bourdon 16
5 Octave 8
6 Flute Bass 8
7 Trombone 16
Choir C – c4  Enclosed
8 Viol di Gamba 8
9 Dulciana 8
10 Lieblich Gedact 8
11 Flauto Traverso 4
12 Clarinet 8
13 Orchestral Oboe 8
14 Tuba 8
15 Tremulant
Great C – c4
16 Double Diapason 16 stopped
17 Open Diapason I 8
18 Open Diapason II 8
19 Clarabella 8
20 Principal 4
21 Harmonic Flute 4
22 Fifteenth 2
23 Mixture III
24 Tuba 8
Swell C – c4  Keys 61 Enclosed
25 Violin Diapason 8
26 Rohr Flute 8
27 Echo Gamba 8
28 Voix Celeste 8
29 Geigen Principal 4
30 Twelfth 2 2/3
31 Fifteenth 2
32 Seventeenth 1 3/5
33 Mixture III 12.15.17
34 Contra Fagotto 16
35 Cornopean 8
36 Oboe 8
37 Tremulant

Couplers:
Swell to Pedal
Swell to Great
Swell to Choir
Swell octave
Swell suboctave
Swell unison off
Choir to Pedal
Choir octave
Choir suboctave
Great to Pedal

Accessories:
3 thumb pistons to each manual;
3 toe pistons each to Great, Swell, Pedal;
Cancel piston to Choir;
2 Balanced pedals to Swell and Choir;
