Napier, Waiapu Anglican Cathedral of Saint John the Evangelist

Foto’s: Andrew & Jane Wood © 2019

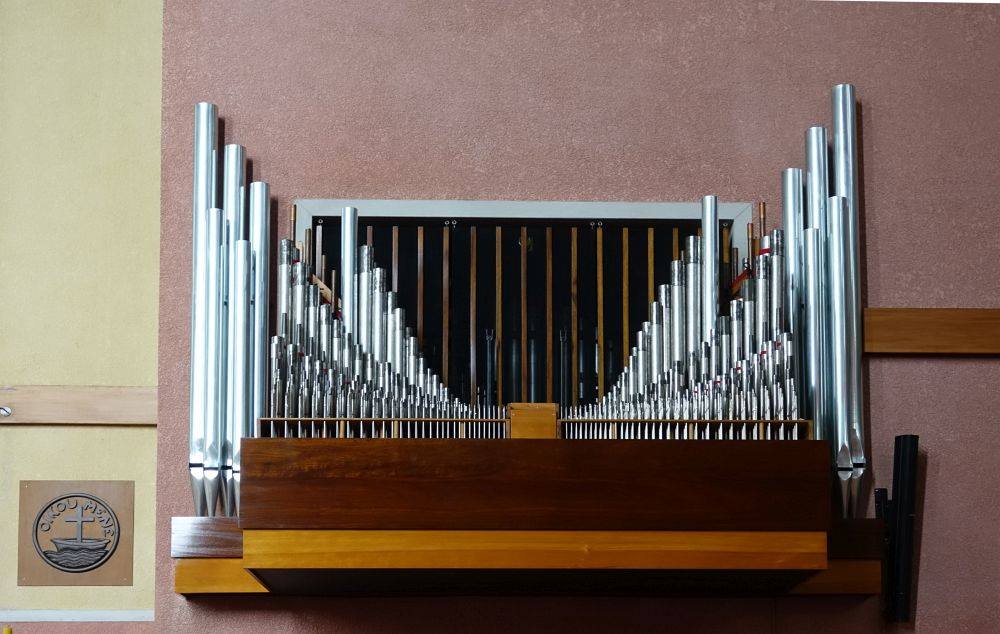

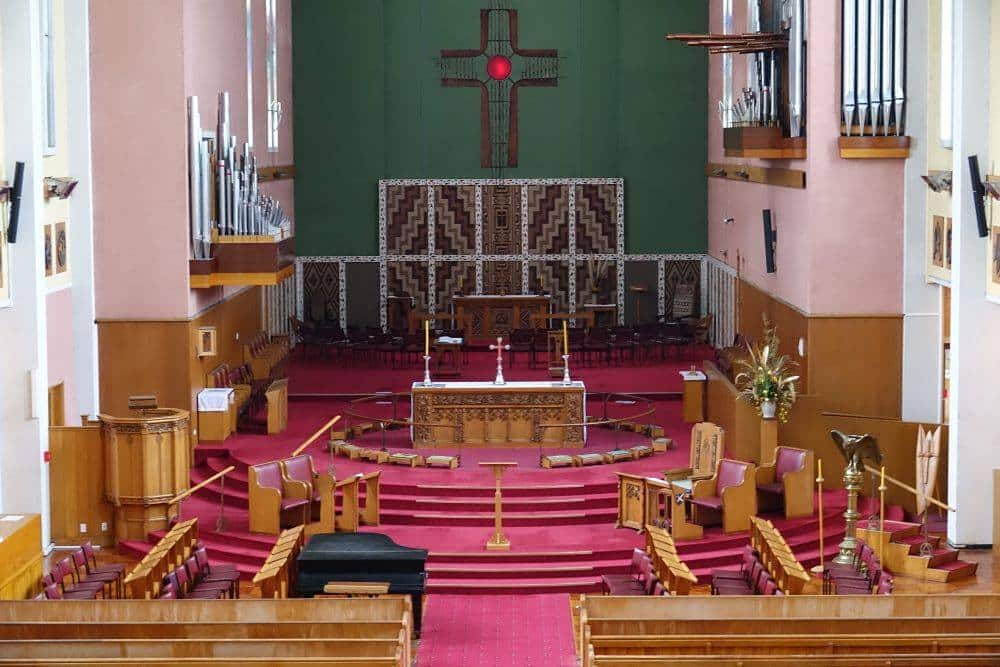

Het orgel in de kathedraal in Napier (Hawke’s Bay) Nieuw-Zeeland, heeft 4 manualen, radiaal concaaf pedaal en 3826 pijpen. Het is oorspronkelijk in 1884 gebouwd door T.C. Lewis voor een Engelse kerk. Na herbouw van de kathedraal na de aardbeving in Napier in 1931, is dit orgel in de kathedraal geplaatst. Het later diverse malen omgebouwd.

Great Organ: C – c4, Manual II
32. Double Open Diapason 16 (b/f)
33. Bourdon 16 (a)
34. Open Diapason 8 (f)
35. Principal 8
36. Stopped Diapason 8
37. Octave 4
38. Nason Flute 4
39. Twelfth 2 2/3
40. Fifteenth 2
41. Tierce 1 3/5
42 .Mixture IV (19-22-26-29)
43. Trumpet 8
44. Clarion 4
45.Fanfare Trumpet 8 (g)
46. Tromba 8 (h)
Solo to Great
Swell to Great
Positive to Great

Positive Organ: C – c4 (North Chamber), Manual I
18. Quintaton 16 (c)
19.Open Diapason 8
20. Chimney Flute 8
21. Quintaton 8(c)
22. Principal 4
23. Wald Flute 4
24. Nazard 2 2/3
25.Block Flute 2
26. Tierce 1 3/5
27. Larigot 1 1/3
28. Sifflote 1
29. Cimbel III (29-33-36)
30. Dulzian 16
31. Cromorne 8
Positive Tremulant
Solo to Positive
Swell to Positive

Solo Organ: C – c4,(expressive) Manual IV
60. Concert Gedackt 8
61. Unda Maris TC 8
62. Salicional 8
63. Viole d’Orchestre 8
64. Viole Celeste 8 TC
65. Flauto Traverso 4
66. Gemshorn 4
67.Piccolo Harmonic 2
68. Clarinet 8
69. Oboe 8
70. Vox Humana 8
71. FanfareTrumpet 8(g) (unenclosed)
72. Tromba 8(h) (unenclosed)
Solo Tremulant
Solo Octave
Solo Sub Octave
Solo Unison Off

Swell Organ: C – c4 (expressive), Manual III
47. Bourdon 16 (i)
48. Geigen Principal 8
49. Rohr Flote 8
50. Viole de Gambe 8
51. Voix Celeste 8 TC
52. Geigen Principal 4
53. Flute Harmonique 4
54. Flautino 2
55.Mixture III (22-26-29)
56.Contra Fagotto 16 (e)
57. Fagotto 8 (e)
58.Trompette 8
59. Clarion 4
Swell Tremulant
Swell Octave
Swell Sub Octave
Swell Unison Off
Solo to Swell

Pedal Organ: C – g1
1. Open Diapason 16 (h) (wood)
2. Principal 16 (b) (metal)
3. Subbass 16 (a)
4. Quintaton 16(c) (Positive)
5. Echo Bourdon 16 (i) (Swell)
6. Quint 10 2/3 (a)
7. Octave 8 (b)
8. Bass Flute 8 (a)
9. Spitz Octave 4
10. Flute 4
11. Super Octave 2
12. Mixture III (19-22-26)
13. Contra Posaune 32 (d)
14. Posaune 16 (d)
15. Fagotto 16 (e) (Swell)
16. Posaune 8 (d)
17. Schalmey 4
Solo to Pedal
Swell to Pedal
Great to Pedal
Positive to Pedal

Ethernet Digital Transmission & Capture System – (Peterson ICS-4000)
 256 level piston capture system with green fluorescent control panel.
 2 open (guest) & up to 10 organist folders with password lockout.
 COPY facility copies contents of a selected level from any organist folder to the current level of the open folder or to
external memory through the USB port.
 American Stop Sequencer with Insert facility and Song lists (Lists any piston setting from any memory level in any
order).
 Built in MIDI performance recording/playback system (Includes stop changes & expression).
 6 divisional thumb pistons to each manual.
 6 divisional toe pistons to Swell (duplicate) and 6 to Pedal.
 12 general thumb pistons.
 “Swell to Ped”, “Positive to Ped”, “Solo to Ped”, “Positive to Gt”, “Solo to Gt”, “Swell to Pos”, “Solo to Pos”, Solo to
Sw” reversible thumb pistons.
 “Great to Ped”, “Swell to Gt”, (thumb & toe pistons).
 “General Cancel” thumb piston.
 “Tutti” illuminated thumb and toe pistons.
 “Setter” thumb piston. (Pistons may also be set by the tripper method. i.e. (Hold the piston to be set IN for 3 seconds
and arrange the stops to be affected before releasing the piston).
 Latching Switch for Great & Pedal Piston Coupler (2 way).
 Latching switch for Generals on Toe Pistons (7-12 on Swell)(1-6 on Pedal).
 Duplicate thumb pistons for Sequencer “NEXT”, “RESTORE”, “LAST”, functions.
 Toe piston for Sequencer “NEXT” function.
 Programmable Crescendo pedal with 4 settable programmes – Sets up to 60 general combinations per programme.
Sets from main control panel. Set combinations can be spread over the range of the pedal if less than 60 are set.
“LOOK” option shows stops programmed.
 Transposer – 6 semitones up or down available from main control panel.
 Lighted reversible piston for – Invert Manuals II & I (together with manual pistons & manual to pedal couplers).
 MIDI IN, MIDI OUT, INSTRUMENT OUT ports.
 MIDI control of sound modules by lighted reversible thumb pistons – MIDI to Great, MIDI to Swell, MIDI to Positive,
MIDI to Solo, MIDI to Pedal.
 Piston compassing. (Allows the scope of any piston to be user defined).
