Foto’s: Wim van der Kooij © 2025

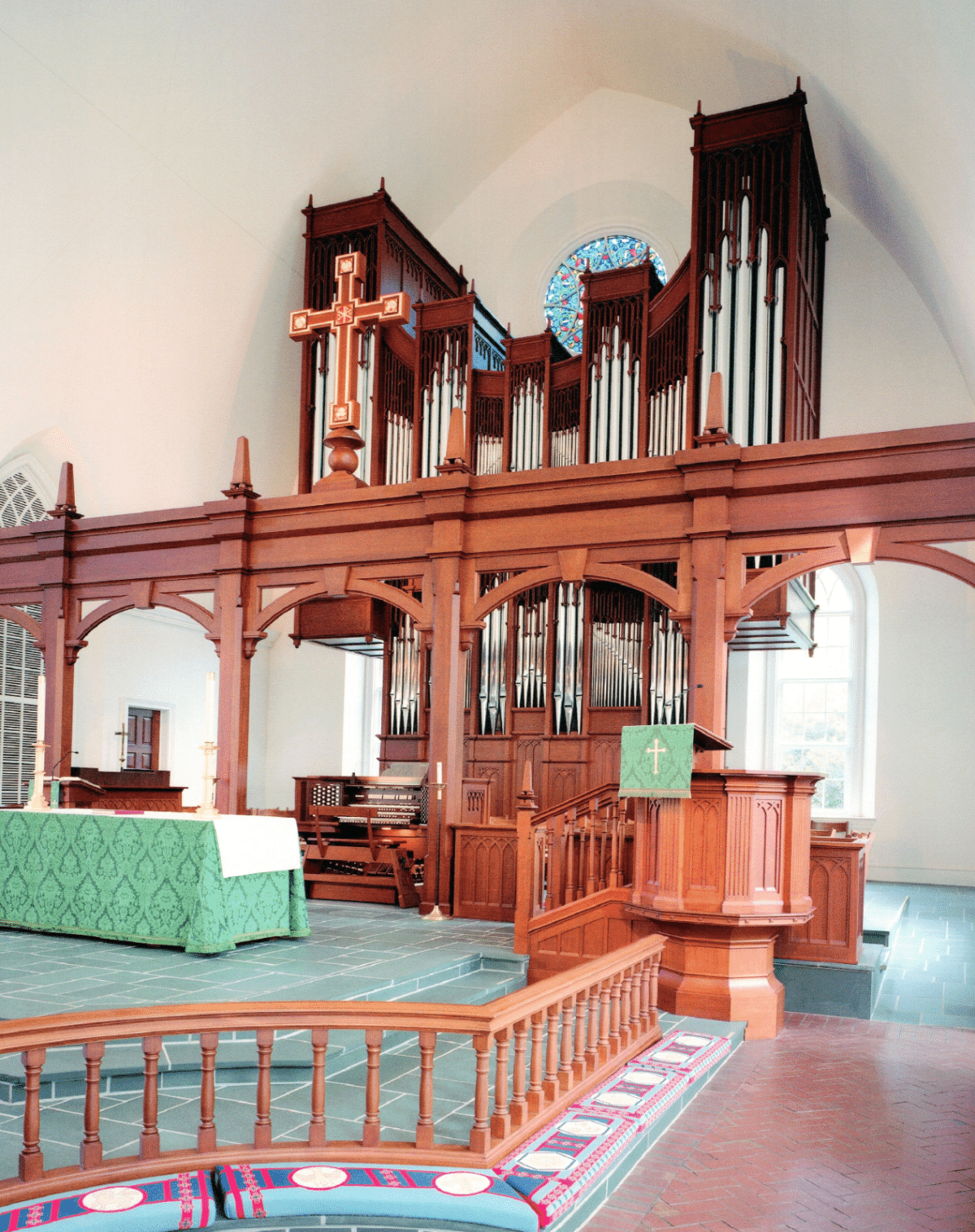

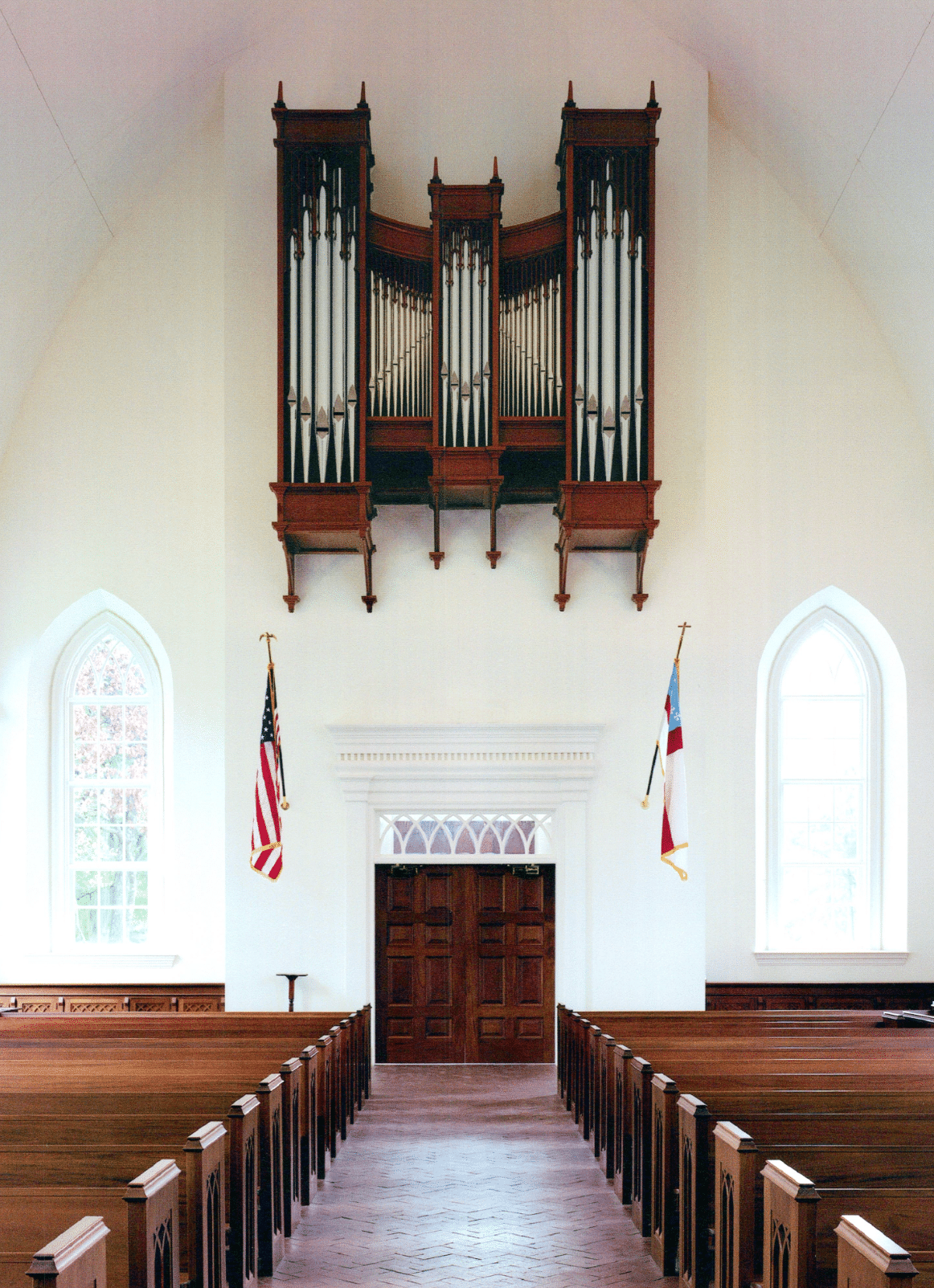

In 2003 bouwde Schantz Organ Company een nieuw sleepladen-orgel met elektrische tractuur, 64 ranks, 40 stemmen 3 digitale stemmen, 3 manualen en een vrij pedaal voor de Saint Peter’s Episcopal Church in Savannah (Georgia) USA. Het pedaalklavier is radiaal concaaf.
Dispositie:
GREAT (C – c4) 61 TOETSEN: Violone 16′, Open Diapason 8′, Violone 8′ – extension, Chimney Flute 8′, Harmonic Flute 8′, Octave 4′, Spire Flute 4′, Fifteenth 2′, Fourniture 4 ranks (1 1/3′), Tromba 8′, Oboe 8′ – from Swell, Tremulant, Zimbelstern, Festival Trumpet 8′ – from Antiphonal.
CHOIR (C – c4) 61 TOETSEN: Stopped Diapason 8′, Gemshorn 8′, Gemshorn Celeste 8′ (c°-c4), Principal 4′, Spindle Flute 4′, Larigot 1 1/3′, Mixture 3 ranks (2/3′), Cremona 8′, Tremulant, Festival Trumpet 8′ – from Antiphonal.
SWELL (C – c4) 61 TOETSEN: Bourdon 16′, Geigen Diapason 8′, Viole 8′, Viole Celeste 8′ (G-c4), Bourdon 8′ – extension, Principal 4′, Harmonic Flute 4′, Nazard 2 2/3′, Piccolo 2′, Tierce 1 3/5′, Plein Jeu 4 ranks (2′), Bassoon-Oboe 16′, Trumpet 8′, Oboe 8′ – extension, Clarion 4′ – extension, Tremulant, Festival Trumpet 8′ – from Antiphonal.
ANTIPHONAL ORGAN (C – c4) 61 TOETSEN: Open Diapason 8′, Gedeckt 8′, Dolcan 8′, Dolcan Celeste 8′ (c°-c4), Principal 4′, Fifteenth 2′ – from Mixture, Mixture 4 ranks (2′), Festival Trumpet 8′, Tremulant.
PEDAL (C – g1) 32 TOETSEN: Contra Bourdon 32′ – digital, Diapason 16′, Violone 16′ – from Great, Bourdon 16′ – from Swell, Octave 8′ – extension, Violone 8′ – from Great, Subbass 8′ – extension, Bourdon 8′ – from Swell, Choral Bass 4′, Open Flute 4′ – extension, Mixture 3 ranks (2′), Contra Trombone 32′ – digital, Contra Bassoon 32′ – digital, Bassoon 16′ – from Swell, Tromba 8′ – from Great, Trumpet 8′ – from Swell, Clarion 4′ – from Swell, Festival Trumpet 8′ – from Antiphonal.
