Walton on Thames-Hersham, Church of Saint Peter

Pictures: Andrew & Jane Wood © 2018

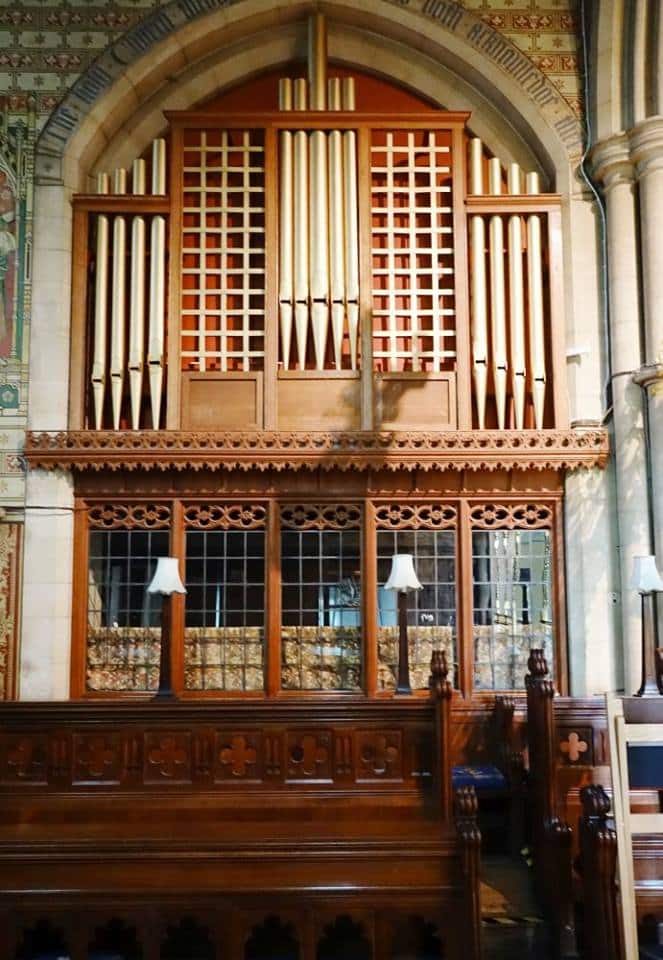

In de Church of Saint Peter in Walton on Thames-Hersham staat een orgel dat in een onbekend jaar is gebouwd door Brindley & Foster. In 1959 plaatste een onbekende orgelmaker een nieuwe speeltafel. Percy Daniel verving in 2002 de tractuur en verplaatste de speeltafel naar de noordbeuk van de kerk. Het sleepladen-orgel heeft elektrische tractuur.

Dispositie:

Pedal Cg1  Enclosed
1 Acoustic Bass 32 A
2 Acoustic Echo Bass 32 C,D
3 Open I 16 A
4 Open II 16 B
5 Bourdon 16 C
6 Echo Bass 16 D
7 Octave 8 A
8 Bass Flute 8 C
9 Octave Flute 4 D
10 Trombone 16 E
11 Trumpet 16 F
12 Tromba 8 E
Choir Cc4  Enclosed
13 Lieblich Bourdon 16 D
14 Double Dulciana 16 I
15 Open 8 H
16 Geigen 8 J
17 Stopt Diapason 8 D
18 Hohl Flute 8 K
19 Dulciana 8 I
20 Gamba 8 L
21 Celeste 8 N
22 Octave 4 H
23 Stopt Flute 4 D
24 Harmonic Flute 4 K
25 Dulcet 4 I
26 Octave Gamba 4 L
27 Octave Celeste 4 N
28 Stopt Twelfth 2 2/3 D
29 Fifteenth 2 H
30 Flautino 2 D
31 Dulcian Fifteenth 2 I
32 Tierce 1 3/5 K
33 Corno di Bassetto 16 O
34 Clarinet 8 O
Great Cc4  Enclosed
35 Double Diapason 16 H
36 Open I 8 G
37 Open II 8 H
38 Stopt Diapason 8 D
39 Dulciana 8 I
40 Octave I 4 G
41 Octave II 4 H
42 Dulcet 4 I
43 Twelfth 2 2/3 H
44 Dulcian Twelfth 2 2/3 I
45 Fifteenth 2 H
46 Dulciana Fifteenth 2 I
47 Cymbale II H
48 Tromba 8 E
49 Octave Tromba 4 E
Swell Cc4  Enclosed
50 Contra Geigen 16 J
51 Geigen 8 J
52 Hohl Flute 8 K
53 Gamba 8 L
54 Octave Geigen 4 J
55 Harmonic Flute 4 K
56 Nazard 2 2/3 K
57 Harmonic Piccolo 2 K
58 Mixture II J
59 Contra Oboe 16 M
60 Trumpet 8 F
61 Oboe 8 M
62 Clarion 4 F
63 Octave Oboe 4 M
Bombarde Cc4  Enclosed
64 Open Diapason I 8 G
65 Octave 4 G
66 Trombone 16 E
67 Double Trumpet 16 F
68 Tromba 8 E
69 Trumpet 8 F
70 Octave Tromba 4 E
71 Octave Trumpet 4 F

Couplers:
Swell to Pedal
Swell to Great
Swell to Choir
Swell octave to Great
Swell suboctave to Great
Swell octave
Swell suboctave
Swell unison off
Choir to Great
Choir to Pedal
Choir octave
Choir suboctave
Choir unison off
Great to Pedal
Choir Octave to Great
Choir Sub Octave to Great

Accessories:
6 double-touch thumb pistons each to Great and Swell
8 double-touch thumb pistons to Choir
4 double-touch thumb pistons to Bombarde
Reversible thumb pistons for Gt-Pd, Sw-Gt, Sw-Ch, Sw-Pd, Ch-Pd
6 DT toe pistons each to Swell and Pedal
Reversible toe pistons for Sw-Gt. Gt-Pd, Ch-Gt, Sw-Ch
4 master thumb pistons
Cancelling pistons to Choir and Bombarde
Stopkeys cancelling shutters over nave and chancel

Further information:
Great Chamber;
Open Wood
Open Diapasons
Stopped Diapason
Dulciana
Tromba
Clarinet
Swell Chamber;
Geigen
Gamba
Celeste
Hohl Flute
Oboe
Trumpet
Bombarde is activated on Choir by drawing any of its stops.
A red warning light marked “Bombarde” so notifies the player.
