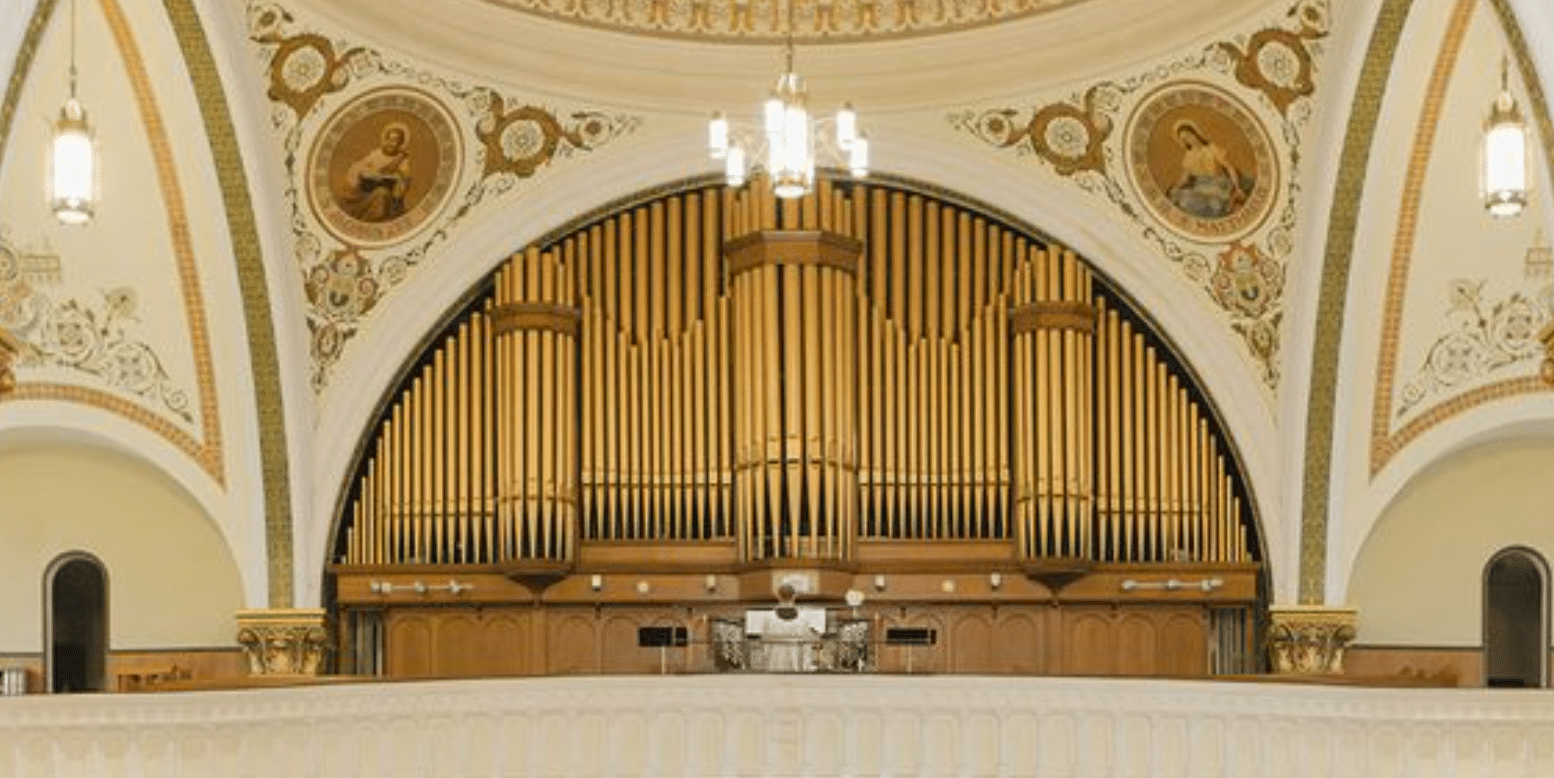

Austin Organ Company Inc. bouwde in 1928 opus 1602. Een nieuw elektro-pneumatisch kegelladen-orgel met 68 ranks, 62 stemmen, 4 manualen en een vrij pedaal voor de Saint Mary of Perpetual Help Roman Catholic Church in Chicago (Illinois) USA. Het pedaalklavier is radiaal concaaf.
Dispositie:
GREAT (C – c4) 61 TOETSEN:
Unenclosed Section: Double Diapason 16′, Major Diapason 8′, Second Diapason 8′.
Enclosed Section: Doppel Flute 8′, Claribel Flute 8′, Gemshorn 8′, Gemshorn Celeste 8′ (TC), Octave 4′, Harmonic Flute 4′, Twelfth 2 2/3′, Fifteenth 2′, Mixture 3 ranks, French Trumpet 8′, Chimes.
CHOIR (C – c4) 61 TOETSEN: Contra Viola 16′, English Diapason 8′, Concert Flute 8′, Dulciana 8′, Unda Maris 8′, Flute d’Amour 8′, Harmonic Piccolo 2′, Clarinet 8′, Tuba Mirabilis 8′ – unenclosed, Harp.
SWELL (C – c4) 61 TOETSEN: Bourdon 16′, Open Diapason 8′, Stopped Flute 8′, Salicional 8′, Voix Celeste 8′ (TC), Octave 4′, Flauto Traverso 4′, Nazard 2 2/3′, Flautino 2′, Tierce 1 3/5′, Mixture 4 ranks, Contra Posaune 16′, Cornopean 8′, Oboe 8′, Vox Humana 8′, Clarion 4′, Tremulant.
SOLO (C – c4) 61 TOETSEN: Stentorphone 8′, Tibia Plena 8′, Gross Gamba 8′, Gamba Celeste 8′ (TC), Flute Ouverte 4′, String Organ 7 ranks, Harmonic Tuba 8′, French Horn 8′, Tremulant.
CHOIR ANTIPHONAL (C – c4) 61 TOETSEN: Chimney Flute 8′, Viole Aetheria 8′, Vox Angelica 8′, Cor de Nuit 4′, Piccolo 2′.
PEDAL (C – g1) 32 TOETSEN: Resultant 32′ – acoustic, Gemshorn 32′, Open Diapason 16′, Bourdon 16′, Violone 16′ – from Great, Dolce Bourdon 16′ – from Swell, Contra Viole 16′ – from Choir, Echo Bourdon 16′ – extension from Antiphonal, Octave 8′, Flute 8′, Cello 8′, Choral Bass 4′, Flute 4′, Bombarde 32′, Trombone 16′, Contra Posaune 16′ – from Swell, Tromba 8′.
