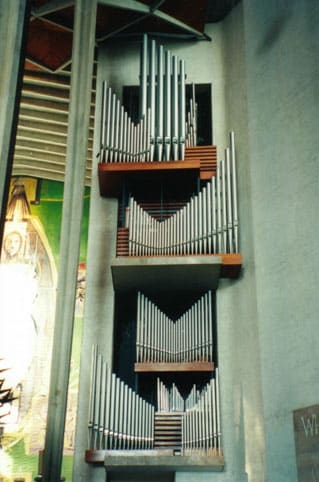

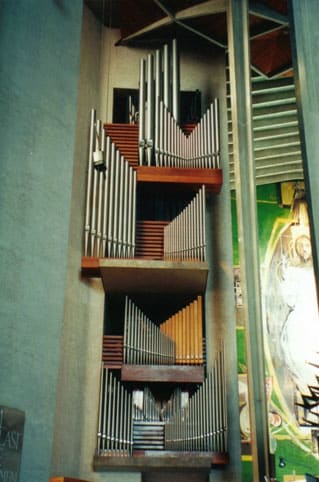

Pictures: Lothar D. Zickermann
Harrison & Harrison 1962
IV+P
Pictures 1995
The stoplist:
| S Great Organ: (C-c4) Double Diapason 16 Bourdon 16 Open Diapason I 8 Open Diapason II 8 Spitzflute 8 Stopped Diapason 8 Octave 4 Gemshorn 4 Octave Quint 2 2/3 Super Octave 2 Mixture IV rks (19.22.26.29) Cornet 5 rks (1.8.12.15.17) Double Trumpet 16 Trumpet 8 Clarion 4 |
N Swell Organ: (C-c4) Quintadena 16 Hohl Flute 8 Viola 8 Celeste 8 Principal 4 Spitzflute 4 Sesquialtera II rks (12.17) Fifteenth 2 Mixture IV rks (22.26.29.33) Oboe 8 Tremulant Contra Fagotto 16 Trumpet 8 Clarion 4 |
Choir Organ: (C-c4) N Claribel Flute 16 S Diapason 8 N Harmonic Flute 8 N Gedackt 8 N Dulciana 8 S Principal 4 N Rohr Flute 4 N Nazard 2 2/3 S Fifteenth 2 N Block Flute 2 N Tierce 1 3/5 S Mixture V rks (22.26.29.33.36) N Cromorne 8 Tremulant N = North case on left Side |
Pedal Organ: (C-g1) S Sub Bourdon 32 (transm) S Open Wood 16 N Open Metal 16 S Diapason 8′ (transm) N Sub Bass 16 N Dulciana 16 S Principal 8 N Spitzflöte 8 S Twelfth 5 1/3 S Fifteenth 4 N Rohr Flute 4 N Open Flute 2 S Mixture IV rks (19.22.26.29) S Bombardon 32 S Ophicleide 16 N Fagotto 16 (from Swell) S Posaune 8 S Bassoon 8 S Schalmei 4 S Kornett 2 |
| N Solo Organ: (C-c4) Diapason 8 Rohr Flute 8 Viole 8 Viole Celeste 8 Octave 4 Open Flute 4 Wald Flute 2 Sifflöte 1 Mixture IV rks (12.15.19.22) Corno di Bassetto 16 Tremulant Orchestral Trumpet 8 Orchestral Clarion 4 |
Couplers: Swell-Choir, Solo-Choir, Choir-Great, Swell-Great, Solo-Great, Swell Octave, Solo-Swell, Choir-Pedal, Great-Pedal, Swell-Pedal, Solo-Pedal, Great and Pedal Combinations coupled several combination accessories electro-pneumatic action wind pressures from 3 to 10 inches |
||
