Headington Quarry, Holy Trinity

Picture and info: © http://www.tickell-organs.co.uk

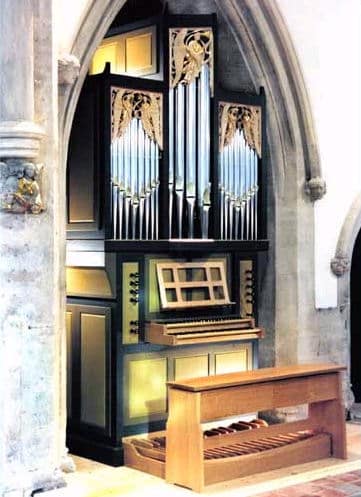

The casework of this organ is painted in subtle shades of grey and green with touches of red and gilding on the front pipe mouths, impost and carvings. In contrast, the console is of polished oak, with key coverings of boxwood and ebony. The carvings by Derek Riley depict angels sounding trumpets, and take their inspiration from nearby stonework.
The design of the organ is very compact: all the manual pipes are arranged on a common soundboard with the eight foot stops sharing a common bass, and the Subbass pipes stand on a separate chest behind the main case. Open metal pipes are cut to length and cone tuned, while the flutes have soldered tops and flexible ears for tuning.
The consultant to the church was Dr John Rowntree.
The stoplist:

Open Diapason 8
Stopped Diapason 8
Principal 4
Fifteenth 2
Mixture III
Chimney Flute 8
Flute 4
Gemshorn 2
Sesquialtera II
Subbass 16

3 couplers:
Positive to Great
Great to Pedal
Positive to Pedal
